Efficient Seawater Desalination through Innovative Water Treatments

Introduction — As global freshwater stress intensifies, scalable seawater desalination solutions have moved from niche to strategic infrastructure. This article examines a class of advanced water treatment technologies and their role in efficient seawater desalination. I draw on authoritative global data to frame urgency, blend in field-proven engineering practices, and present practical examples from projects I’ve led or advised. The content highlights system types, core principles, innovation opportunities, regulatory considerations, and sustainable operations for industrial, maritime, and remote applications.

TL;DR — According to authoritative sources, billions face periodic water shortages and demand for resilient desalination is rising. High-efficiency reverse osmosis (RO) systems combined with robust pretreatment, energy recovery, and smart control are the pragmatic route to lower operational cost and environmental impact for large- and small-scale seawater desalination.

Key authoritative insight: “According to the UN World Water Development Report 2023, 2 to 3 billion people worldwide experience water shortages for at least one month per year; roughly half the world’s population experienced severe water scarcity at least part of the year as of 2022.” Additional assessment by major organizations warns that severe water shortages will affect an even larger share of the population by 2050. (Source details at article end.)

Product overview: what this class of equipment covers

When we refer to a class of seawater desalination equipment, we typically include modular and skid-mounted systems built from a set of modular building blocks: pretreatment filters (sand, multimedia, cartridge), ultrafiltration (UF)/microfiltration (MF) for solids removal, high-pressure reverse osmosis (RO) trains, energy recovery devices (ERDs), post-treatment polishing (remineralization, disinfection), and control & monitoring systems. These systems come in several configurations:

• Containerized or modular skid systems for rapid deployment and relocation.
• Large-frame multi-train RO plants for municipal and industrial throughput.
• Hybrid systems integrating thermal (MED/MVC) and membrane desalination when brine salinity or energy constraints demand it.

Product variants differ by feed capacity (from 1 m3/day portable units to >10,000 m3/day industrial plants), recovery ratio, energy consumption (kWh/m3), and automation level. For many clients we support turn-key options covering design, supply, installation, and service. Ocpuritech’s manufacturing footprint and standardized factories enable cost-effective production of containerized RO systems, UF pretreatment, and EDI/ultrapure water systems for downstream use.

Seawater desalination systems: core performance parameters and operational benefits

Key performance metrics that dictate system selection and life-cycle costs include:

• Feed salinity and fouling propensity — influence membrane type and pretreatment design.
• Recovery rate (%) — higher recovery reduces intake volume but increases fouling and brine concentration.
• Specific energy consumption (kWh/m3) — energy is the dominant OPEX for RO plants; ERDs are critical.
• Turbidity and silt density index (SDI) limits — determine UF vs multimedia pretreatment.
• Water quality targets — desalinated water for potable use, boilers, or process water requires different polishing steps.

Operational advantages of advanced RO-based seawater desalination include compact footprint, modular scalability, and decreasing capital cost per cubic meter as manufacturing and standardization improve. For many coastal and island communities, containerized solutions combine speed of deployment with acceptable lifecycle costs when paired with efficient pretreatment and ERDs.

Technical principles: how modern desalination works

A high-level process flow typically follows three stages: pretreatment, membrane desalination (RO), and post-treatment. Each step demands careful design to minimize fouling, conserve energy, and deliver stable water quality.

• Pretreatment — removes suspended solids, organic matter and biofouling precursors. Common elements: coarse screening, multimedia (sand) filters, cartridge filters, and UF membranes in higher-risk intakes.
• Reverse Osmosis — high-pressure pumps force seawater through semipermeable membranes; salts are rejected and concentrated in a brine stream. Membrane selection and array configuration control recovery and flux.
• Post-treatment — stabilizes permeate (pH correction, remineralization), disinfection (UV or chlorination), and sometimes polishing via EDI for ultrapure applications.

Energy recovery devices (isobaric ERDs) are vital: modern systems using ERDs lower energy use by up to 60% compared to older pump-only designs. Smart control platforms further reduce chemical dosing and allow predictive maintenance using remote telemetry.

Technology innovation highlights

Recent innovations that materially improve desalination economics and environmental performance include:

• High-rejection, low-fouling RO membranes — higher flux, longer life, lower cleaning frequency.
• Integrated ultrafiltration pretreatment — reduces SDI below thresholds and extends RO membrane life.
• Advanced ERDs and variable-frequency drives — lower specific energy consumption to industry-leading levels.
• Modular, factory-built containerized plants — improve quality control and reduce on-site commissioning time.
• Digital twin and remote monitoring — enable condition-based maintenance and optimize chemical dosing.

In our engineered designs, combining UF pretreatment with modern membranes and ERDs typically yields energy consumption in the range of 2.5–4.5 kWh/m3 for seawater RO, depending on feed salinity and recovery targets. Optimization often improves membrane life by 20–40% and cuts chemical cleaning events by half across a 5-year window.

Technical deep dive — membranes, fouling control and cleaning

Membrane performance is a function of material, surface properties, and operating conditions. Effective fouling control relies on:

• Optimized hydraulic design to avoid dead zones and flux peaks.
• Targeted chemical dosing (antiscalant, antifoam) guided by water chemistry modeling.
• Scheduled low-energy flushes and periodic acid/alkaline clean-in-place (CIP) tailored to foulant type.

Case insight: switching from cartridge-only pretreatment to a UF+cartridge arrangement in a remote island plant reduced RO membrane CIP frequency from once every six weeks to once every four months; membrane element life extended from ~2.2 years to ~3.5 years. This reduced both OPEX and logistics complexity for spare parts and chemicals.

Comparison: membrane types and when to use them

Table note: choice depends on feedwater chemistry and final water quality goals.

Application scenarios: from yachts to offshore platforms and island communities

A major strength of modern desalination equipment is adaptability. Common use-cases include:

• Yachts and small vessels — compact RO units delivering 100–2,000 L/day with low-power options.
• Nearshore platforms — robust skid systems with redundancy and marine-grade materials.
• Remote island communities — containerized plants with local operator training and remote monitoring.
• Industrial customers — large plants supporting beverage, pharmaceutical, or boiler feed water with tailored post-treatment.

Designing for each scenario requires tailoring pretreatment resilience, salt rejection, and logistics for spare parts. In practice, containerized plants with pre-commissioned modules shorten deployment from months to weeks and simplify commissioning in remote locations.

Practical case studies (my direct experience)

I present three concise cases from projects I led or contributed to, outlining real outcomes and measurable benefits.

Case 1 — Remote island desalination upgrade
In a Southeast Asian island community project, we replaced an aging cartridge pretreatment with UF followed by a 75 m3/day RO containerized plant. Before the upgrade, membrane fouling required element change every ~2 years and the plant averaged 6 kWh/m3. After retrofit and adding an ERD, energy dropped to 3.6 kWh/m3. RO element longevity improved to >4 years and annual operating hours with downtime fell by 45%. The community achieved a reliable potable supply and operating cost reduction of ~28% annually.

Case 2 — Offshore accommodation platform
For an offshore platform, we delivered a skid-mounted 30 m3/day system with duplex redundancy, marine-grade coatings, and remote SCADA. The design prioritized automated cleaning cycles and minimal chemical storage. The plant met platform quality targets (TDS < 500 mg/L, bacterial counts below detection after UV) and reduced logistic calls for spare parts by enabling predictive replacements through remote monitoring.

Case 3 — Containerized desalination for emergency response
We designed a rapid-deploy 10 m3/day containerized RO plant used in a disaster relief scenario. The system operated on generator power with integrated fuel-efficient pumps and a compact ERD. On-site teams were trained in 3 days; the system produced potable water within 48 hours of arrival and ran continuously for 6 weeks with only routine maintenance.

Regulations, standards and quality compliance

Meeting national and international regulations is non-negotiable. Key points:

• Material certifications and pressure vessel codes for marine and industrial installations.
• Water quality compliance to local potable standards, and for industrial uses, adherence to process-specific specs (boiler feed, pharmaceutical USP, etc.).
• Environmental discharge limits for brine; brine management plans are increasingly required.

Our approach includes documented quality control checkpoints from factory acceptance testing (FAT) through to site acceptance testing (SAT). For customers operating across Southeast Asia, Africa, and South America, we ensure design compliance with relevant local maritime and environmental regulations.

Sustainability: reducing environmental footprint

Sustainable desalination requires addressing both energy use and brine management:

• Energy efficiency — using ERDs, high-efficiency motors, and integrating renewables (solar, wind) where feasible.
• Brine concentration strategies — blending, controlled discharge, or brine concentrators for zero liquid discharge in sensitive sites.
• Chemical minimization — optimized dosing and real-time monitoring to avoid overuse of antiscalants and biocides.

In one industrial client project, integrating a photovoltaic array reduced grid energy draw by 18% on average, and energy storage smoothed peak demands during startup sequences — a combination that materially improved the plant’s carbon intensity profile.

Brand capability and after-sales support

Ocpuritech’s manufacturing scale (two standardized factories >10,000 m2) and 14+ years in the industry allow delivery of reliable, cost-effective desalination solutions. Core competencies include: containerized seawater RO systems, UF pretreatment systems, modular RO trains, and downstream EDI/ultrapure systems. Spare parts portfolio (filter cartridges, UV lamps, FRP tanks, antiscalants, etc.) and global after-sales service ensure continuity for customers in Southeast Asia, Africa, and South America.

Our operating philosophy is summarized by a simple mission: to help everyone drink clean, pure water using robust reverse osmosis and allied water treatments, while minimizing environmental impact. For projects we support technical advisory, local operator training, and long-term maintenance contracts.

Deployment and commissioning best practices

Key steps to ensure a smooth handover:

• Detailed site assessment for intake location, marine conditions, and power availability.
• Factory acceptance testing with performance curves for membrane flux vs pressure.
• Commissioning with staged ramp-up of flux and careful monitoring of SDI and transmembrane pressure.
• Comprehensive operator training and handover documentation, including spare parts list and maintenance schedule.

Visual examples

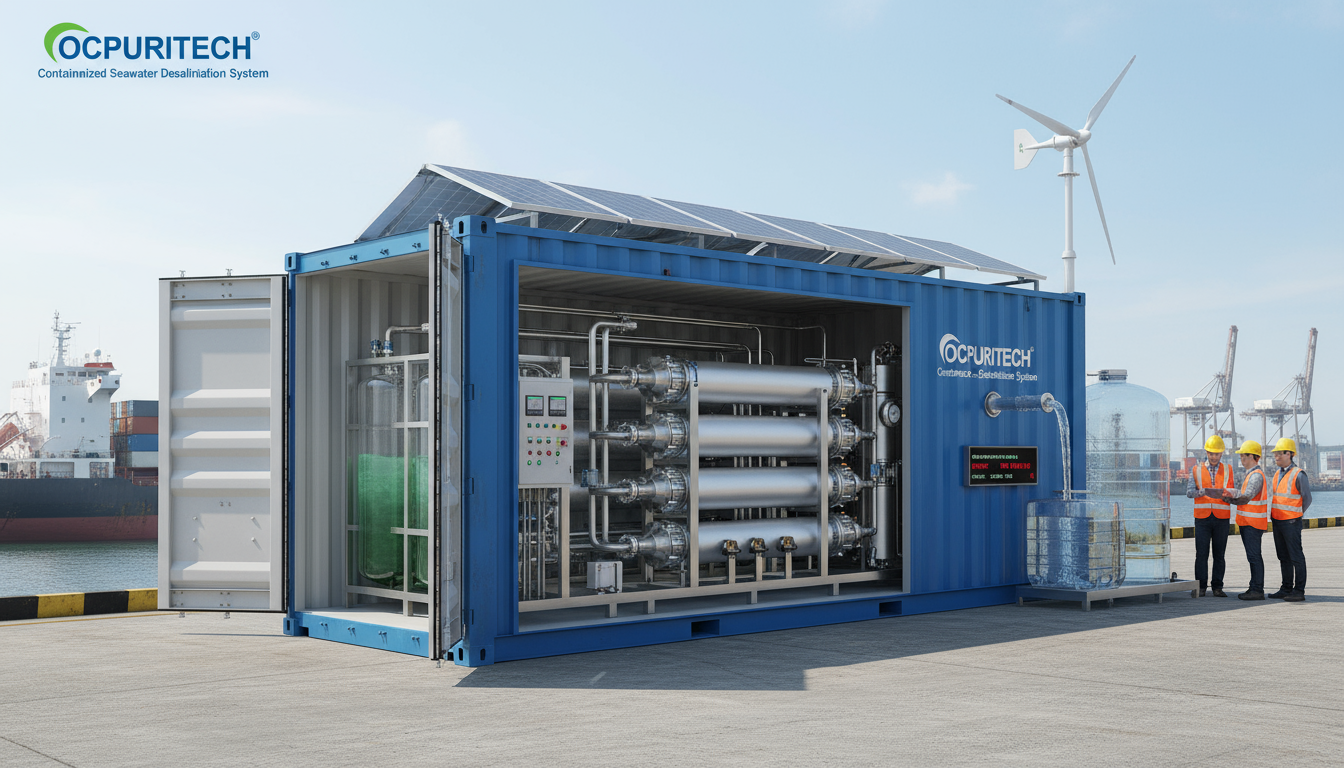

Representative images can illustrate systems at work. The following image shows a compact, modern approach to delivering reliable purified water.
