The RO Seawater Desalination Equipment is a high-efficiency water treatment system designed to convert seawater into clean, safe freshwater. Using advanced reverse osmosis technology, this system offers stable performance for commercial, industrial, and marine environments, ensuring continuous access to high-quality water even in areas without natural freshwater resources.
What Is Reverse Osmosis Seawater Desalination Technology?
Reverse osmosis (RO) seawater desalination technology works by applying high pressure to seawater and forcing it through semi-permeable membranes. These membranes allow only pure water molecules to pass while rejecting salt, heavy metals, microorganisms, and other dissolved impurities.
This process is widely used in modern seawater treatment equipment, thanks to its high salt rejection rate, energy efficiency, and long-term reliability. RO technology has become the core method for producing potable water from seawater in coastal cities, islands, ships, offshore platforms, and commercial facilities.

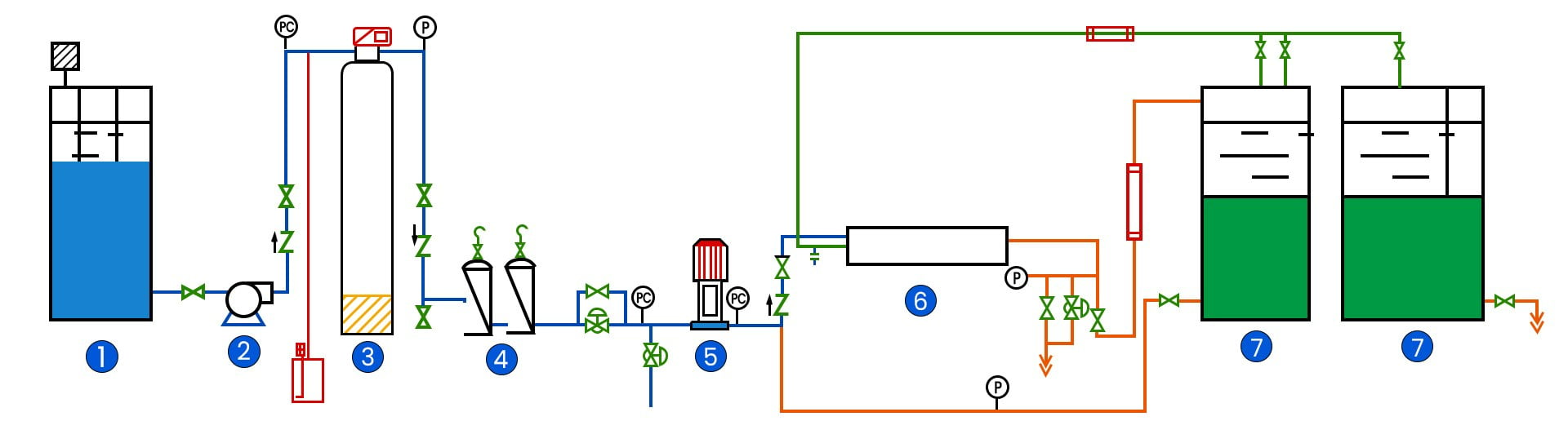

Industrial RO Seawater Desalination Equipment Flow Chart
| 1 | Raw water tank | 2 | Booster pump |
| 3 | Multi-media filter | 4 | Precision filter |
| 5 | high-pressure pump | 6 | RO Membranes |
| 7 | CIP Tank | 8 | Product water tank |
▪ Low pressure seawater feed pump/High pressure plunger pump
▪ High rejection rate membrane/5&20 micro filter
▪ 600psi/1000psi FRP membrane housing
▪ High and low pressure safety switches/ Concentrate regulator valve
▪ High and low pressure gauges/ Fresh water and concentrate water flow meter
▪ Micro controllers
What Determines Seawater Reverse Osmosis Machine Price?
The total SWRO seawater reverse osmosis machine cost is largely dependent on your raw feed water quality and the required product water purity standards. To meet these specific operational demands, industrial SWRO systems require tailored pre-treatment and post-treatment components, which directly influence the final investment.
The following list details many of the common pre and post treatment components:
- Chemical & pH Dosing Systems: Optimized for source water stabilization and chlorination dosing.
- Media Filtration: High-capacity media filters, quartz sand and activated carbon filters for turbidity and organic removal.
- Specialized Filtration: Water softener and iron removal filters.
- Chemical Injection: Antiscalant and antifouling dosing systems to prevent membrane scaling.
- Automation Controller: Advanced PLC components (e.g., Mitsubishi) and smart controllers (e.g., Siemens).
- Advanced Instruments: Online TDS, pH, and conductivity monitoring for continuous water quality tracking.
- Stainless Steel Frame: Corrosion-resistant Stainless Steel skid or frame engineered for harsh marine environments.
- Water Quality Tailoring: Blending systems to meet specific output standards.
- Disinfection Systems: High-output UV sterilizers or ozone generators for biological control.
- Electrical Infrastructure: Industrial three-phase electrical systems and integrated accessories.
- CIP System: Integrated Clean-in-Place (CIP) membrane cleaning systems to maximize RO membrane lifespan and reduce operational costs (OPEX).
