Ultrafiltration Water System: A Comprehensive Solution for Water Purification
An Ultrafiltration Water System (UF) is an advanced water filtration technology designed to remove impurities and contaminants, ensuring high-quality purified water. By using a semi-permeable membrane, these systems efficiently filter out particles, bacteria, viruses, and other unwanted substances from water. Ultrafiltration is widely used across various industries, including municipal water treatment, food and beverage processing, and industrial applications, making it a versatile and essential solution for clean water management.
How Does an Ultrafiltration Water System Work?
The Ultrafiltration Water System operates by pushing water through a semi-permeable membrane with pore sizes ranging from 0.01 to 0.1 microns. This allows the system to filter out suspended solids, organic compounds, and microorganisms, while allowing water molecules and dissolved minerals to pass through. The system works at relatively low pressure, making it energy-efficient and ideal for applications where high water purity is essential.
When water is passed through the UF membrane, larger particles such as bacteria, viruses, and colloidal materials are trapped and separated from the clean water. This process results in water that is free from harmful pathogens, making it safe for consumption or industrial use. Ultrafiltration systems can be configured to meet different flow rates, from small-scale residential units to large industrial setups.
Ultrafiltration Water Treatment Operating Conditions
| Parameter | Operating Condition | Parameter | Operating Condition |
|---|---|---|---|
| Operating Pressure | 0.1 – 0.5 MPa (1 – 5 bar) | Membrane Type | Polymeric (e.g., PVDF, PES) or Ceramic |
| Flux Rate | 20 – 200 L/m²·h | Transmembrane Pressure | Typically 0.2 – 0.4 MPa (2 – 4 bar) |
| Recovery Rate | 70% – 90% | Cleaning Frequency | Periodic cleaning, usually every 3-6 months |
| Feed Water Temperature | 5°C – 45°C (41°F – 113°F) | Cleaning Methods | Chemical (acid/alkaline) cleaning, backwashing |
| Feed Water pH Range | 2 – 11 | Membrane Lifetime | 3 – 7 years (depending on operating conditions) |
| Turbidity of Feed Water | < 100 NTU (Nephelometric Turbidity Units) | Chlorine Tolerance | Usually < 0.1 mg/L (depending on membrane material) |
| Total Suspended Solids (TSS) | < 100 mg/L | Salinity/Conductivity | Typically < 2000 µS/cm |

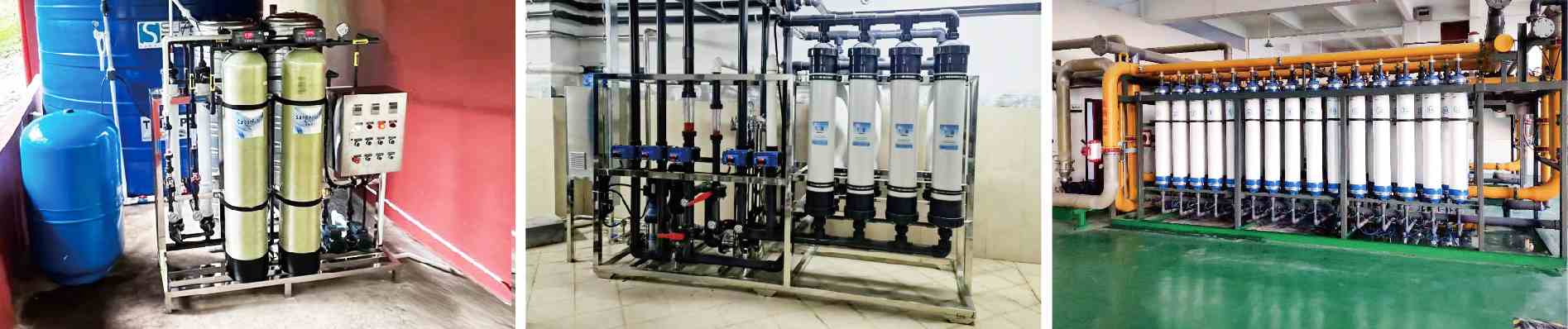

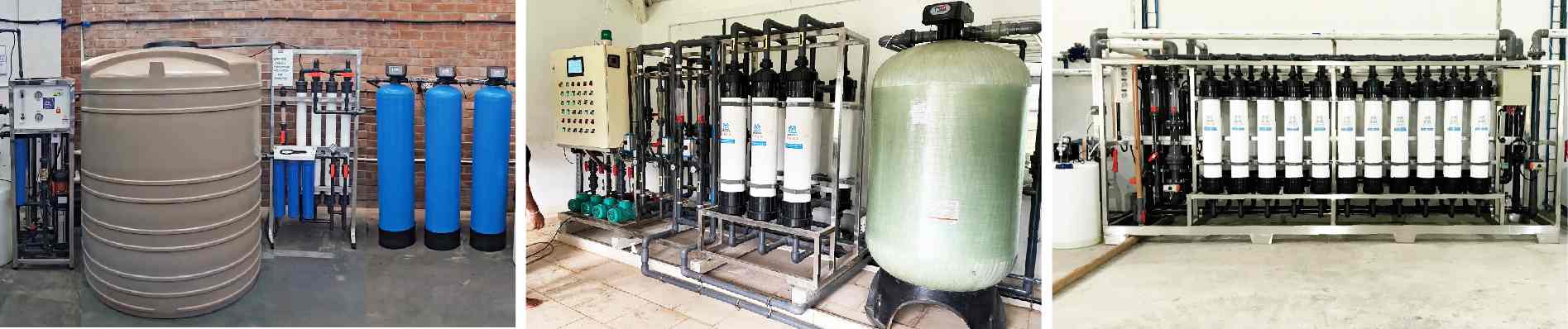

| 10001/h UF System Application | 10t/h UF System Application | 25t/h UF System Application |
|---|---|---|
| Process well water for small bottled water production. | Usage: drinking water for poultry (chicken farm, pig farm). | Shrimp farming wastewater recycling project. |
| 500l/h UF System Application | 8t/h UF System Application | 30t/h UF System Application |
|---|---|---|
| Treat well water for daily use. | Reverse osmosis pretreatment for bottled water production. | Recycling of wastewater from hardware factories. |
