3-in-1 Water Bottling Filling Machine-Machines Used in Bottled Water Production
Originally developed for small to medium-sized water brands, this 3-in-1 water bottling filling machine integrates rinsing, filling, and capping into a single rotary unit. As the world’s smallest system of its kind, it actively reduces hygiene risks while maintaining consistent output. For example, purified and mineral water producers can achieve affordable, practical bottling without separate equipment. Therefore, it offers an ideal entry point into the bottled water industry.
Popular Models of Bottled Water Production Machines
| Model | OC-8-8-3 | OC-12-12-1 | OC-18-18-6 | OC-24-24-8 | OC-32-32-10 |
|---|---|---|---|---|---|
| Rinsing head quantity | 8 | 12 | 18 | 24 | 32 |
| Filling head quantity | 8 | 12 | 18 | 24 | 32 |
| Capping head quantity | 1 | 1 | 6 | 8 | 10 |
| Rated production capacity (bottles/Hour) | 1000-3000 | 2000-3000 | 4000-5000 | 6000-8000 | 10000-12000 |
| Power (KW) | 2.2 | 2.2 | 2.2 | 3.0 | 4.0 |
| Overall Size (CM) | 225*180*195 | 210*160*230 | 230*170*230 | 280*190*230 | 350*250*230 |
| Weight (KG) | 2500 | 2200 | 2500 | 4000 | 4500 |
Among these models, the core operating principle remains the same. Therefore, the following section explains the three key processes in detail.
Core Processes of Water Bottling Filling Machine

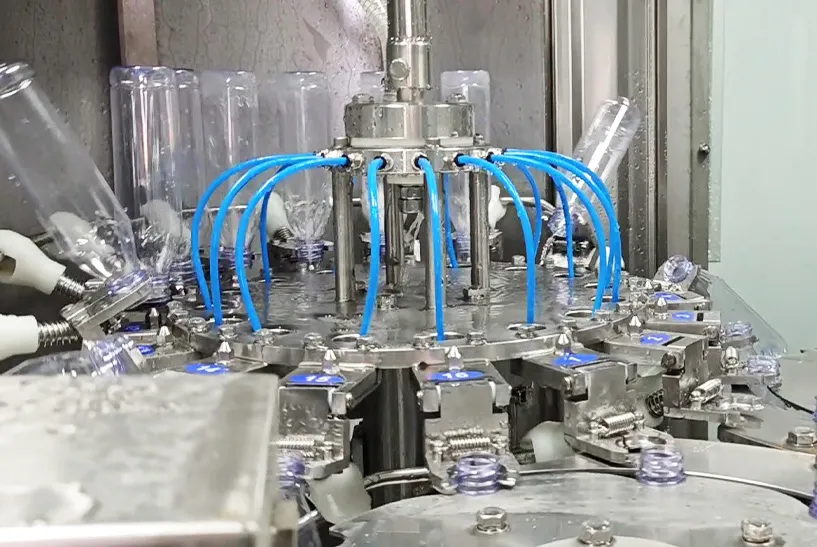

1. Rinsing Machine
We clean the bottles before filling them. To ensure long-term hygiene, we use SUS304 bottle grippers with high-efficiency nozzles. Our company’s unique flip-style and double-opening bottle gripper design inverts the empty bottles by 180 degrees and rinses them with filtered water or cleaning solution (both inside and outside) to remove any debris, dust, or contaminants. This ensures the bottles remain hygienic and ready for the filling process, maintaining the water’s quality and safety standards.

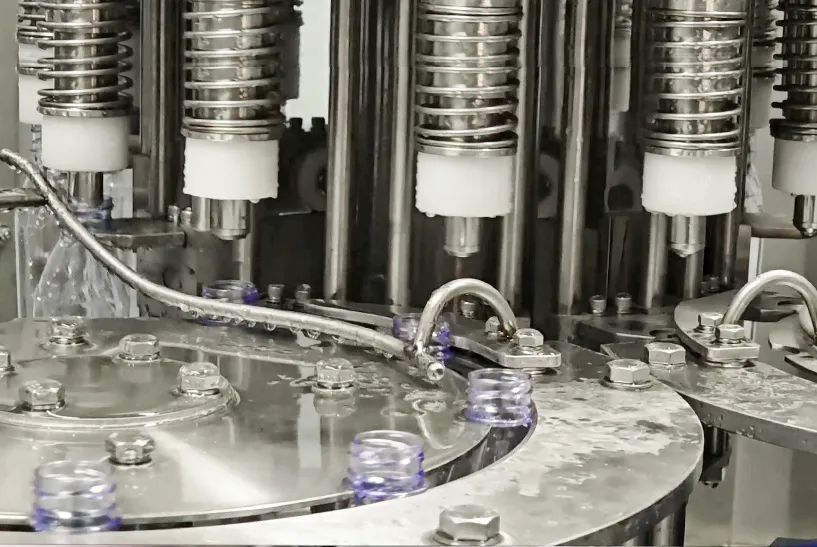

2. Filling Machine
We designed the machine’s filling structure with a rational layout and excellent sealing performance. First, the entire process begins with placing empty containers on the conveyor belt. Then, the conveyor belt transports them to the filling station. The equipment operates smoothly, using a gravity-based filling system that ensures the exact and consistent amount of liquid in each bottle, without any leakage or overflow.
We design the filling nozzles as non-contact or anti-drip, and the filling valve material is SUS304 to maintain the highest hygiene standards. A PLC controls the entire process for precise and reliable operation. After filling, Operators or the conveyor system transfer containers directly to the capping station for sealing.

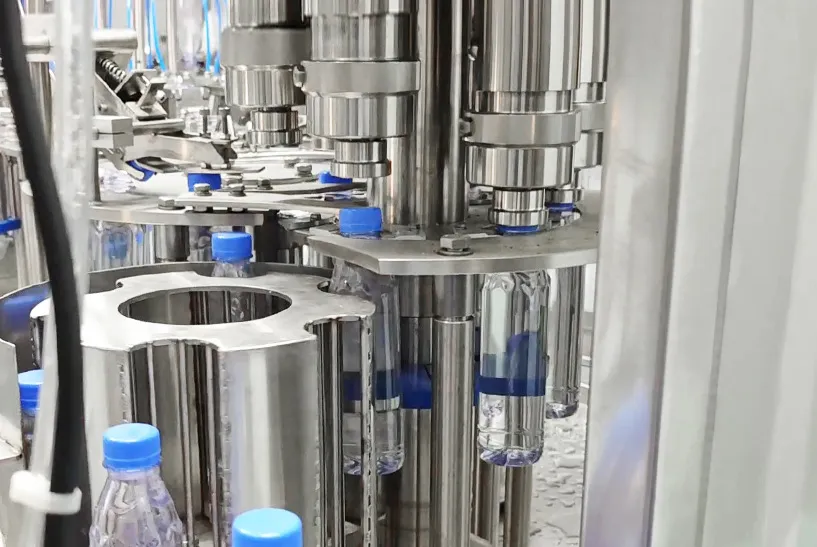

3. Capping Machine
The rotary capping machine uses a rotating screw mechanism to tighten the bottle cap onto the bottle neck. Each capping head moves in sync with the bottles, performing the capping operation while filling the bottles with water. The capping ensures the integrity of the water, prevents leakage, and maintains freshness, which is crucial for quality assurance.
Additionally, these machines are meticulously designed to withstand the high-intensity demands of high-speed capping operations, ensuring long-term reliability and can run continuously for long periods without the need for frequent maintenance or repairs.
Higher production efficiency is one of the key goals for bottled water and beverage companies. This machine features an adjustable speed limit function, allowing the speed to be increased or decreased as needed. The production process can be adjusted according to changes in market demand, thereby improving production efficiency.
Buying filling equipment represents a significant investment, but it is the best strategy for reducing labor and time costs. Businesses can focus their energy on more profitable areas without wasting time. Our equipment is affordable and time-saving, making it the ideal solution for the water business.
In summary, this 3-in-1 water bottling filling machine reduces manual handling, improves packaging hygiene, and adapts to your production volume. Therefore, it is not only an affordable investment but also a time-saving strategy. Finally, if you are ready to optimize your bottled water line — contact us for a fast, free quote.
