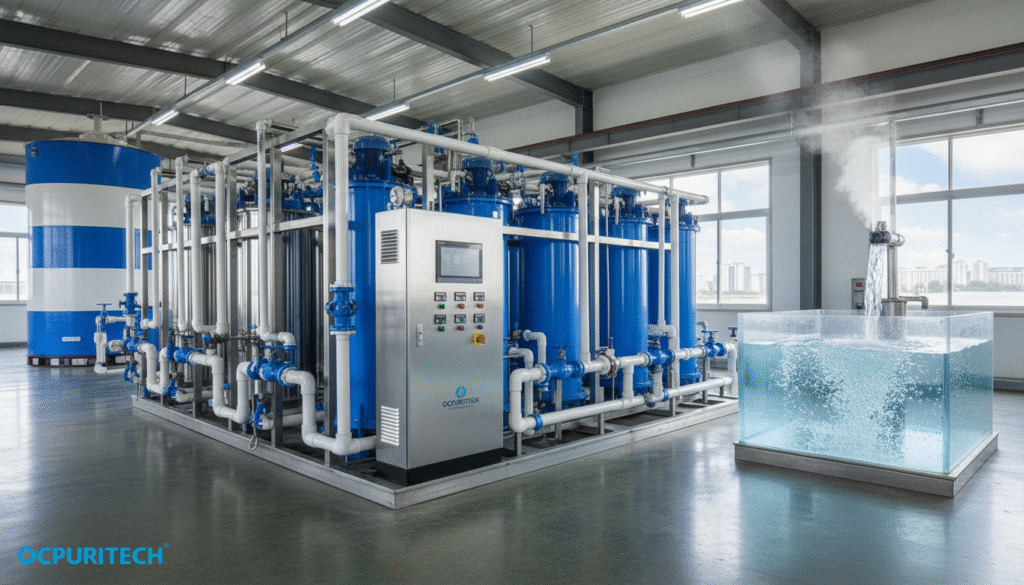

Choosing the Right Ultrafiltration Drinking Water Systems for Your Facility

Choosing the right ultrafiltration drinking water systems for your facility is crucial to ensuring water safety, compliance with industry standards, and operational efficiency. From industries such as mining, food processing, pharmaceuticals, cosmetics, to municipal water treatment, the demand for ultra-clean water dictates a solution that combines advanced technology, ease of operation, and cost-effectiveness. This article offers an in-depth exploration of ultrafiltration (UF) systems, focusing on their technical principles, pricing components, performance metrics, real-world applications, and how a reputable provider like Ocpuritech delivers reliable solutions worldwide.

Overview of Ultrafiltration Drinking Water Systems and Their Applications

Ultrafiltration is a membrane filtration technology that uses semi-permeable membranes to remove suspended solids, colloids, bacteria, viruses, and other macromolecules from water. The pore size of UF membranes typically ranges from 0.01 to 0.1 microns, which effectively retains impurities larger than water molecules.

There are primarily two types of ultrafiltration systems applicable for drinking water purification:

• Stand-alone UF systems for direct treatment of surface water, well water, or municipal water supplies to produce potable water.
• Hybrid systems combined with reverse osmosis (RO) or nanofiltration (NF) membranes for multi-stage purification, common in bottled water plants and pharmaceutical labs.

Key industries leveraging UF drinking water systems include:

• Mining operations requiring treated process water and potable supply for workforce facilities.
• Food and beverage production with rigorous hygiene standards, utilizing UF for ingredient and cleaning water.
• Pharmaceuticals and cosmetics manufacturing needing ultrapure water for formulations.
• Municipal water treatment plants aiming to enhance quality compliance and reduce chemical usage.
• Laboratories and medical institutions demanding high-quality purified water.

Depending on feed water sources—ranging from groundwater, river water, reclaimed water, to seawater—the pretreatment requirements and membrane configurations are tailored to meet the specific quality goals and operational sustainability.

Technical Principles and Core Components of Ultrafiltration Systems

Understanding the core technology behind ultrafiltration drinking water systems is essential for selecting the right equipment. The technology basis includes:

• Membrane Filtration Technology: Ultrafiltration membranes are typically made of polymeric materials like PVDF (polyvinylidene fluoride) or PES (polyethersulfone). These membranes trap particles, colloids, bacteria, and some viruses, while allowing water molecules to pass.
• Cross-flow Filtration: Feed water flows tangentially across the membrane surface, reducing membrane fouling by sweeping away retained particles.
• Automated Control Systems: Modern UF plants integrate sensors and programmable logic controllers (PLC) to monitor transmembrane pressure, flow rates, and water quality. Automation facilitates optimized cleaning cycles and alerts for maintenance, cutting downtime and extending membrane life. Automation integration aligns with modern water treatment trends and regulatory compliance automation for technicians.
• Pretreatment Modules: Typically include sand filters, activated carbon filters, and softeners to remove turbidity, organic matter, and hardness, protecting membranes from damage.
• Backwash and Cleaning Protocols: Periodic backwashing with clean water and chemical cleaning maintain membrane permeability and lifespan.

The integrity of membrane modules and quality of automation controls is especially vital in industrial applications with variable feed water qualities. Employing systems designed with robust materials and smart controls profoundly impacts operational reliability and compliance with strict water quality parameters water quality parameters.

Price Breakdown and Investment Value of Ultrafiltration Drinking Water Systems

Pricing an ultrafiltration system involves understanding its components and operational costs over time. The main factors impacting cost include:

• Base System and Membrane Modules: Membrane quality, surface area capacity, and modular design influence the upfront investment.
• Pretreatment and Post-treatment Equipment: Additional filtration, disinfection, or mineralization units add to capital costs.
• Automation and Control Systems: Advanced monitoring, remote control, and data logging enhance usability but increase initial cost.
• Installation and Commissioning: Site preparation, plumbing integration, and operator training are necessary expenses.
• Operation and Maintenance: Energy consumption, membrane cleaning chemicals, replacements, and labor affect the total cost of ownership.

From my experience managing a UF system upgrade for a food processing facility serving over 500 m³/day, investing in higher-quality membranes and automated control systems reduced downtime by 25% and cut chemical cleaning frequency by 40%, achieving a return on investment within 24 months, consistent with industry observations regarding cost-efficiency ROI in water treatment.

Performance Specifications and Quality Assurance Standards

Clients should demand detailed specifications that reflect both design intent and operational performance to ensure long-term reliability and water quality compliance. Key performance metrics include:

• Turbidity removal ≥ 99%, typically reducing turbidity to less than 0.1 NTU.
• Microbial rejection: bacteria and viruses rejection rates exceeding 99.9%.
• Flux rate: membrane permeate flux optimized between 50 to 150 LMH (liters per square meter per hour) depending on feed water.
• Operating pressure range: typically 1.0 – 3.5 bar, ensuring energy-efficient operation.
• Recovery rates: 80% and above, minimizing water waste.

Regarding material construction, membranes are built from durable polymeric materials resistant to chlorine and chemical cleaning agents. System frames and piping often use stainless steel or high-grade FRP to comply with sanitary standards. Quality controls enforce leak-free seals, membrane integrity, and longevity.

Quality assurance also involves certification compliance such as NSF, FDA for materials in contact with potable water, and ISO 9001 manufacturing standards. This is crucial in food, pharmaceutical, and bottled water sectors where safety and traceability are paramount water safety in food production.

Market and Application Insights: Tailoring Solutions to Industry Needs

Local water characteristics significantly influence system selection. For example, in mining operations, feed water may contain high suspended solids and variable pH, demanding robust pretreatment and membranes resistant to abrasion. In food and beverage, low turbidity but stringent microbiological parameters require reliable membrane integrity and post-treatment UV disinfection.

Emerging membrane innovations emphasize sustainability, with enhanced membrane materials that reduce fouling and energy consumption emerging membrane technologies. This enables facilities to meet tightening regulatory requirements while lowering environmental footprints.

My involvement in a municipal water upgrade in Southeast Asia revealed that integrating automated ultrafiltration with real-time sensor feedback allowed the plant to maintain stable water quality despite seasonal feed water fluctuations, improving compliance rates to over 99.7% for microbial limits. This aligns with trends toward smarter water treatment systems driven by automation automation for technicians.

Case Studies: Proven Ultrafiltration System Success Stories

To illuminate the practical benefits of ultrafiltration, here are a few illustrative cases:

• Food Processing Plant Upgrade: A mid-sized beverage company in South America integrated UF membranes into its purification line to replace sand filtration. The transition yielded a 35% reduction in turbidity-related downtime and improved taste stability of the final product, supporting compliance with strict food safety regulations.
• Mining Camp Potable Water System: In an African mining facility, the UF system treating borehole groundwater addressed high microbial loads and suspended solids, effectively preventing waterborne illnesses among workers. Automated cleaning controls reduced manual interventions by 60%, enhancing safety and operational uptime.
• Pharmaceutical Lab Water Treatment: A pharmaceutical manufacturer in Asia used UF as part of a multi-barrier approach, feeding into an EDI ultrapure water system. This combination ensured endotoxin and particulate removal to meet stringent laboratories’ purified water standards consistently.

These cases underscore the versatility of ultrafiltration across diverse industrial scenarios, contributing to safe, high-quality drinking water outcomes.

Custom Solutions and Comprehensive Service Support

Top suppliers understand no two water treatment projects are alike. Therefore, tailored ultrafiltration systems offer a range of pre- and post-treatment configurations based on customer needs, including:

• Pretreatment options such as multimedia filters, activated carbon filters, and softeners to optimize feed water for membrane longevity.
• Post-treatment solutions like UV disinfection, ozonation, or remineralization to adjust water for taste and microbiological safety.
• Comprehensive installation, commissioning, and operator training services to ensure smooth integration and knowledge transfer.
• After-sales maintenance programs, including membrane replacement plans and remote monitoring support to maximize uptime and system efficiency.

From my work with Ocpuritech systems, their combination of modular design and automation software greatly facilitates customized deployment. Their dual manufacturing bases in Guangzhou and Jiangmen provide high-quality membranes and components, assuring clients receive durable and cost-effective solutions fit for global markets, including Southeast Asia, Africa, and South America.

Manufacturer Profile and Competitive Advantages

Ocpuritech, a pioneer since 2011 in industrial water purification, champions quality, innovation, and sustainability. Their product lines span ultrafiltration, reverse osmosis, nanofiltration, and ultrapure water systems, meeting demand from industries ranging from bottled water to pharmaceuticals.

Built on a foundation of advanced production technology and stringent quality controls, Ocpuritech emphasizes environment-friendly operations and continual service improvements. Their dedication to helping customers worldwide—from agriculture to cosmetics and medical sectors—demonstrates a broad application expertise and a commitment to global health through safe drinking water solutions.

Apart from technical capability, their in-house development of automation and remote control platforms aligns with industry movements toward smarter, more manageable water treatment, delivering tangible benefits such as resource savings, operational transparency, and compliance assurance.

Summary and Investment Recommendations

Overall, ultrafiltration drinking water systems represent an essential investment for facilities prioritizing water safety, operational reliability, and process efficiency. Proper selection depends on thorough analysis of feed water quality, industry standards, and operational goals.

To maximize benefits, consider the following guidance based on experience and market data:

• Invest in membranes and automation controls that match your facility’s flow rates and quality targets; don’t compromise on materials and technological robustness.
• Plan for comprehensive pretreatment and post-treatment to protect membranes and achieve desired water standards.
• Ensure your supplier offers tailored service packages that facilitate installation, training, and long-term maintenance.
• Evaluate total cost of ownership, balancing upfront investment with operational savings gained from reduced downtime, maintenance needs, and energy efficiency.

Our collective industry experience affirms that partnering with established manufacturers like Ocpuritech, known for their quality membranes, automation, and global service network, can significantly enhance project success and return on investment. Their commitment to clean water access worldwide underscores the broader societal value of investing in advanced ultrafiltration technology.
