What is an Industrial Ultrafiltration(UF) Water System?
An industrial ultrafiltration system uses a semi-permeable membrane to filter particles from water at a micro-level. This process is part of a larger filtration continuum that includes pre-treatment and post-treatment, but ultrafiltration is especially effective at removing particles ranging from 0.01 to 0.1 microns in size. It is commonly used as a crucial step in water purification, providing a reliable and energy-efficient alternative to traditional filtration methods.
Organic Matter: ① Natural Organic Matter (NOM): UF membranes can remove large fractions of NOM, particularly humic and fulvic acids, proteins, and polysaccharides. ②Biopolymers: These are effectively removed by UF membranes. ③ Particulate Organic Matter: UF excels at removing larger colloidal and suspended organic materials.
Microorganisms: Bacteria, viruses, protozoa (like Cryptosporidium), and other pathogens.
Particulate Matter: Suspended solids, silt, rust, sediments, and colloids. Turbidity: Cloudiness in water caused by suspended particles.
Complete Water Treatment Process: From Raw Water Tank to UF Membrane
| Step Number | Process Component | Description |
|---|---|---|
| 1 | Raw Water Tank | The initial storage of raw water. |
| 2 | Feed Water Pump | Pump that moves water from the raw water tank to the next stage. |
| 3 | Sand Filter | A filtration system that removes larger particles from the water. |

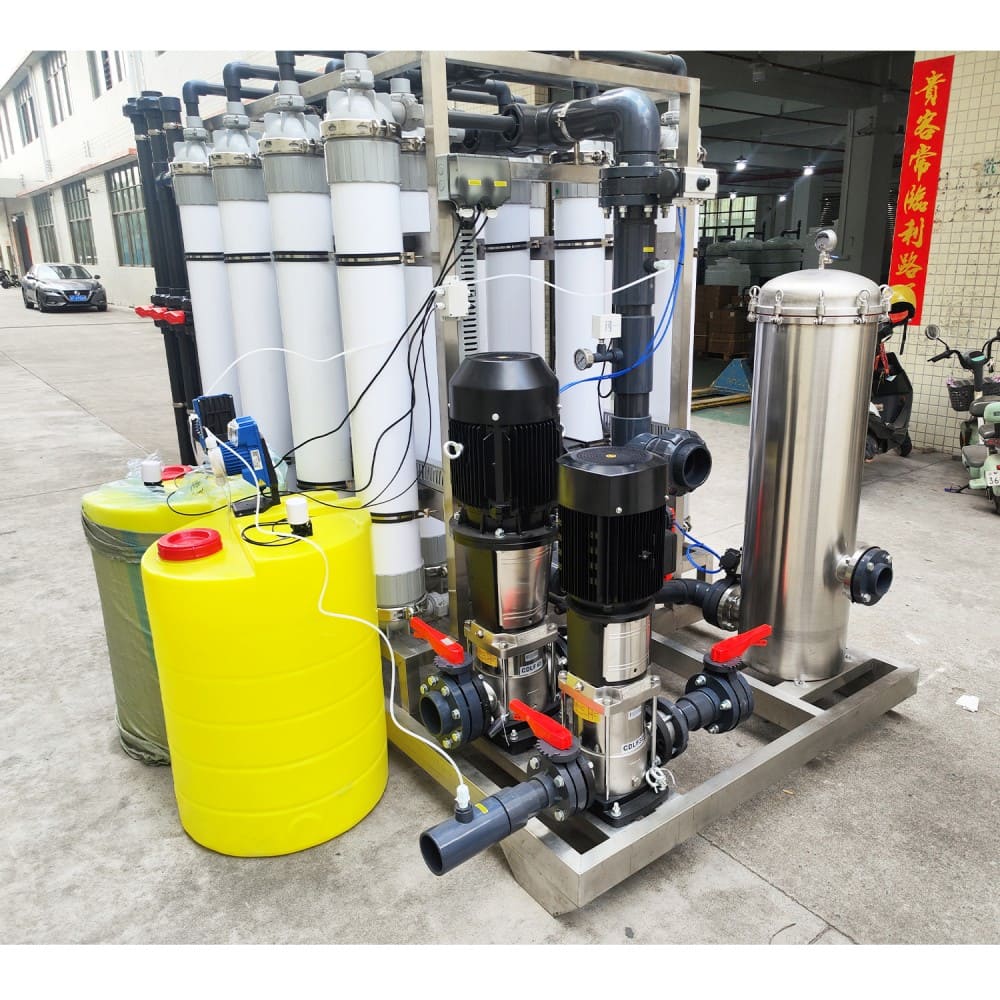

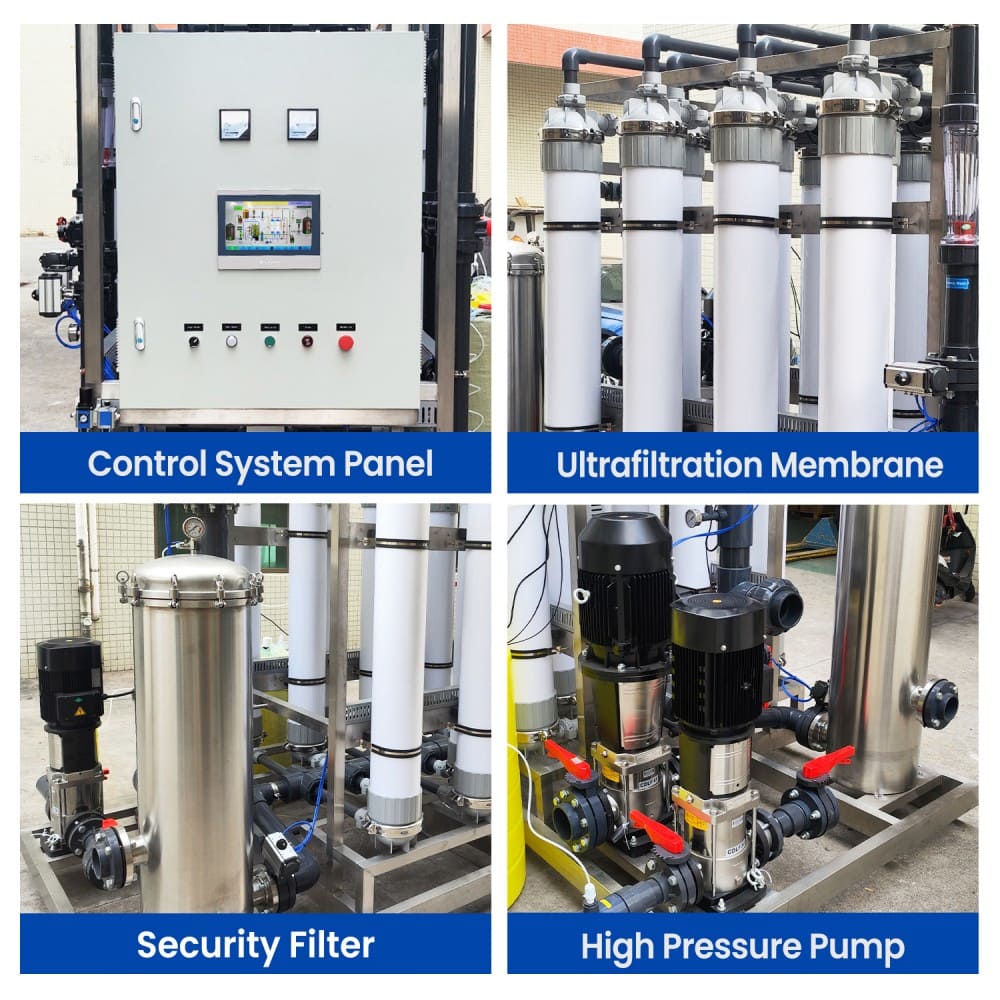

| 4 | Security Filter | Additional filtration for finer particles and contaminants. |
| 5 | High Pressure Pump | Pumps water at high pressure to the ultrafiltration system. |

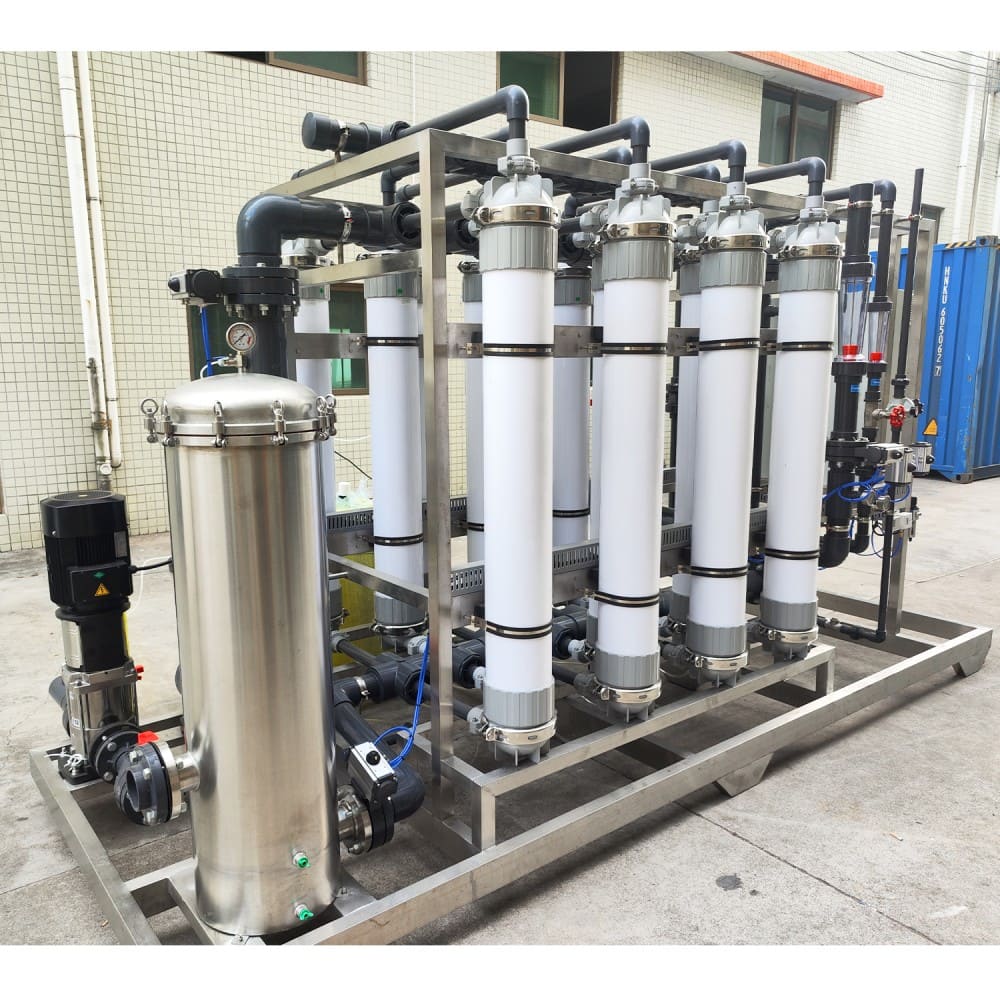

| 6 | Ultrafiltration Membrane | Filters out smaller impurities, producing cleaner water. |
| 7 | UF Water Tank | The storage tank for filtered water after ultrafiltration. |
Customized Solutions Based On Customer’s Water Requirements
| 10001/h UF System Application | 10t/h UF System Application | 25t/h UF System Application |
|---|---|---|
| Process well water for small bottled water production. | Usage: drinking water for poultry (chicken farm, pig farm). | Shrimp farming wastewater recycling project. |
| 500l/h UF System Application | 8t/h UF System Application | 30t/h UF System Application |
|---|---|---|
| Treat well water for daily use. | Reverse osmosis pretreatment for bottled water production. | Recycling of wastewater from hardware factories. |
