What Is Reverse Osmosis & How it Works

Reverse osmosis is a cutting-edge water treatment technology. It's primarily used to remove dissolved solids, impurities, and contaminants from water, yielding pure water. Unlike natural osmosis, reverse osmosis uses external force to achieve the opposite process. Reverse osmosis works by applying external pressure, usually higher than the osmotic pressure, to force water from a high concentration solution, like seawater or polluted water, to a low concentration side. This process retains impurities and produces pure water, opposite to the natural osmosis direction.

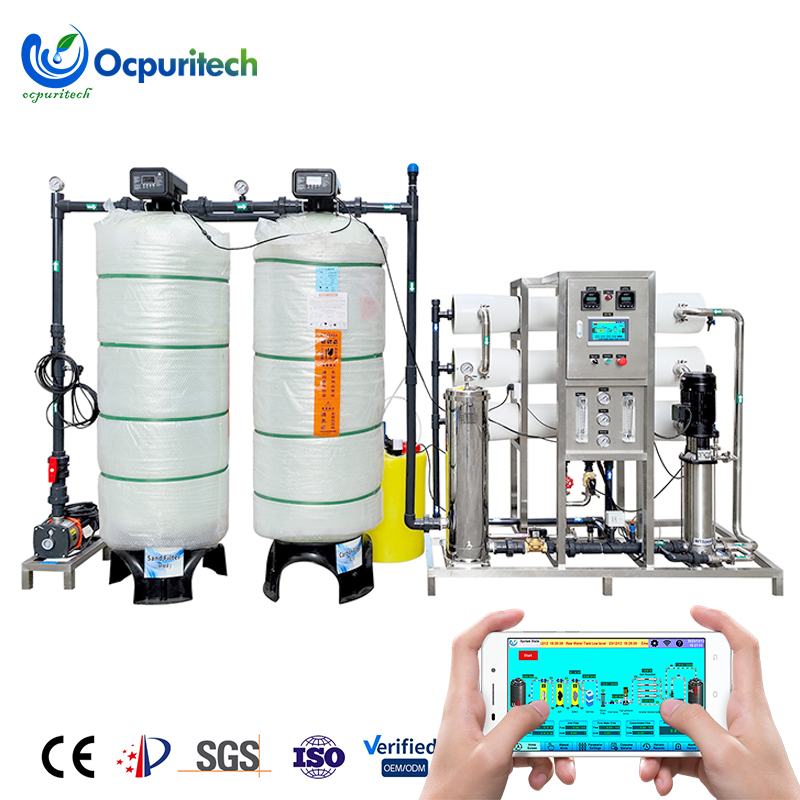

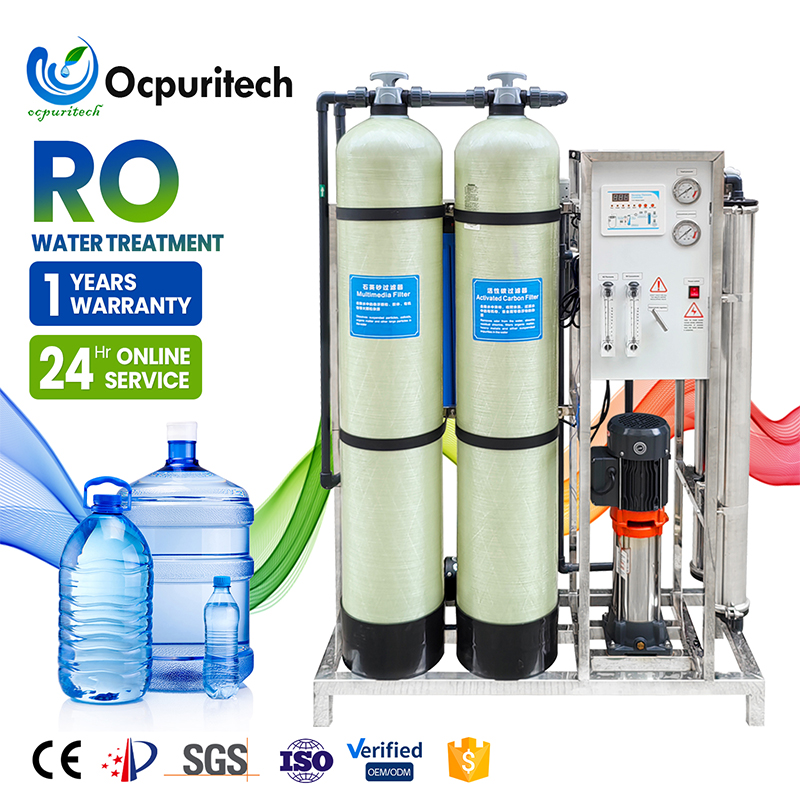

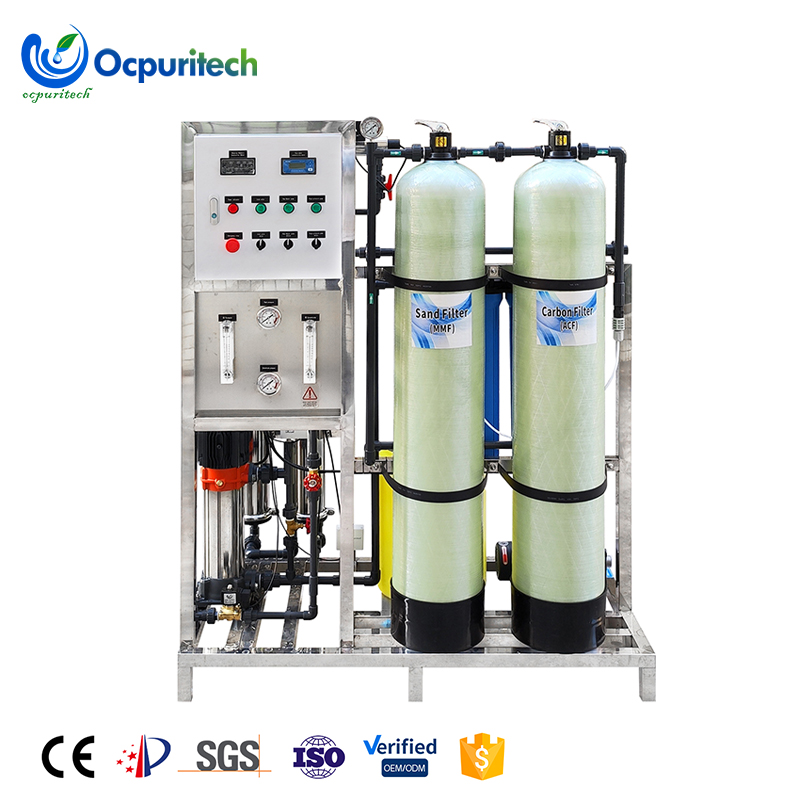

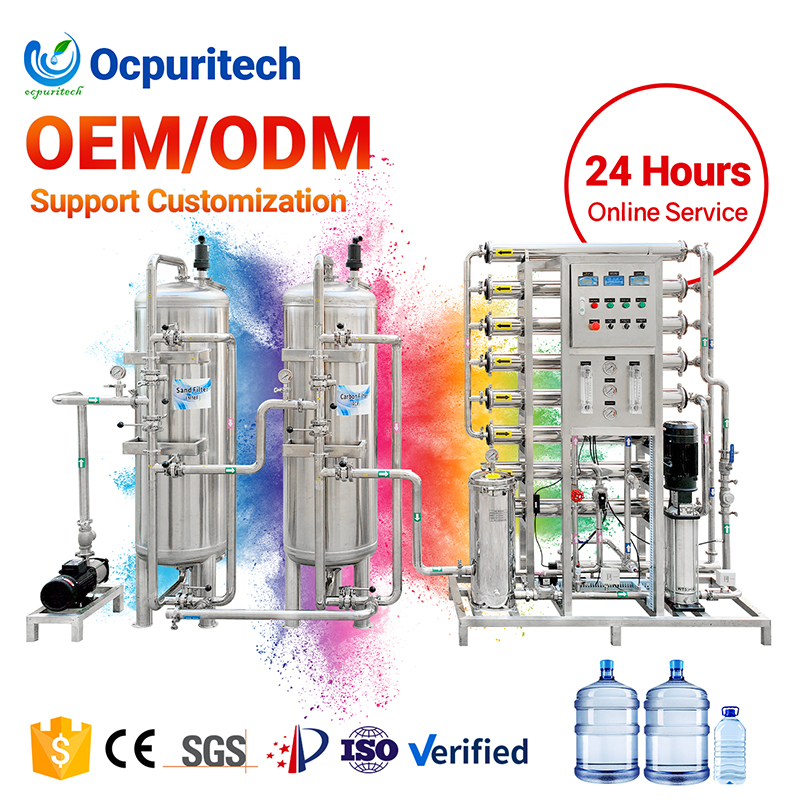

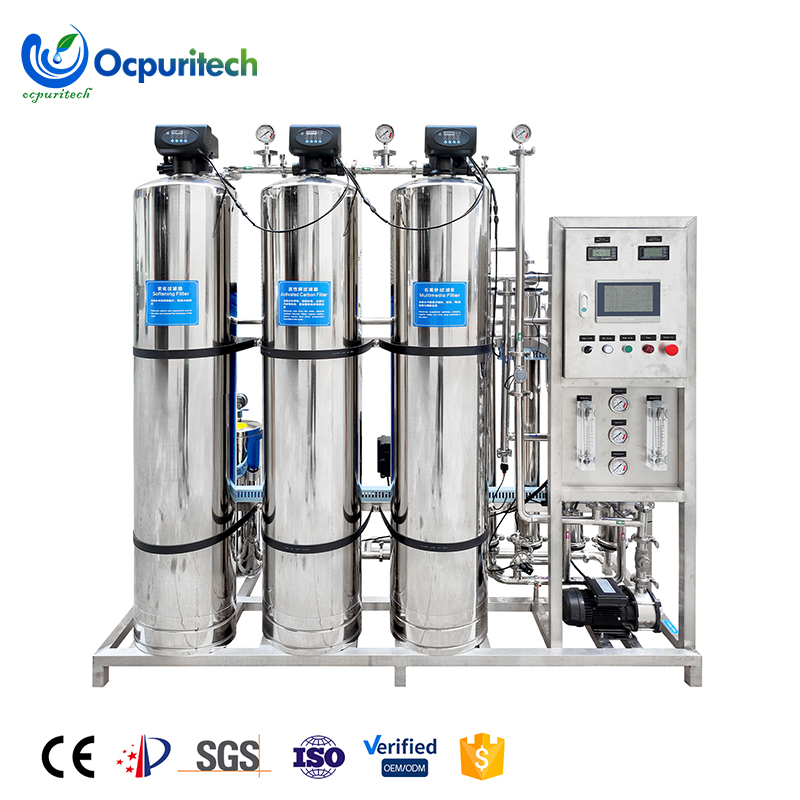

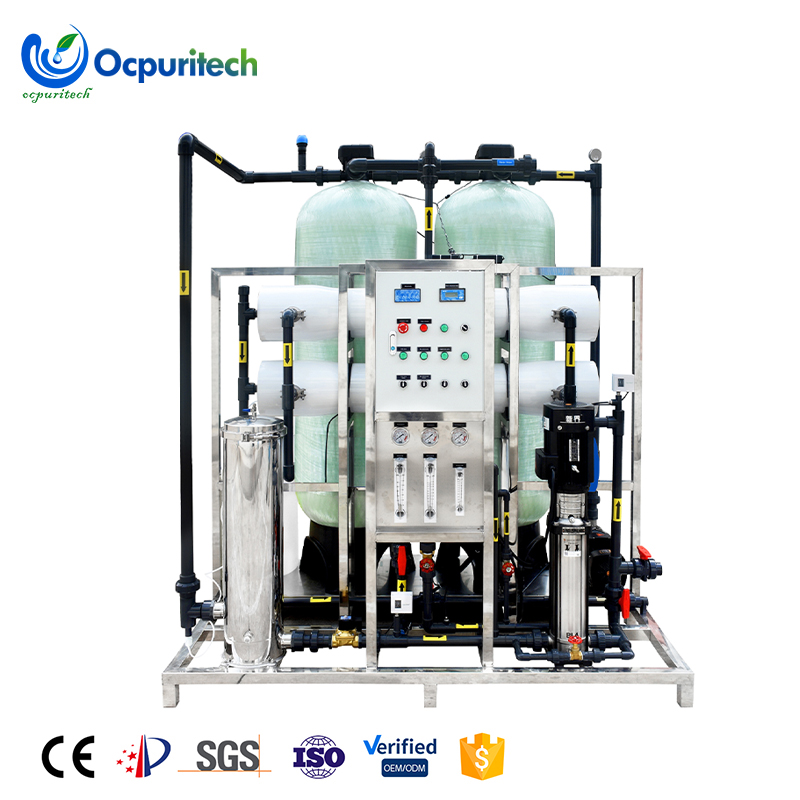

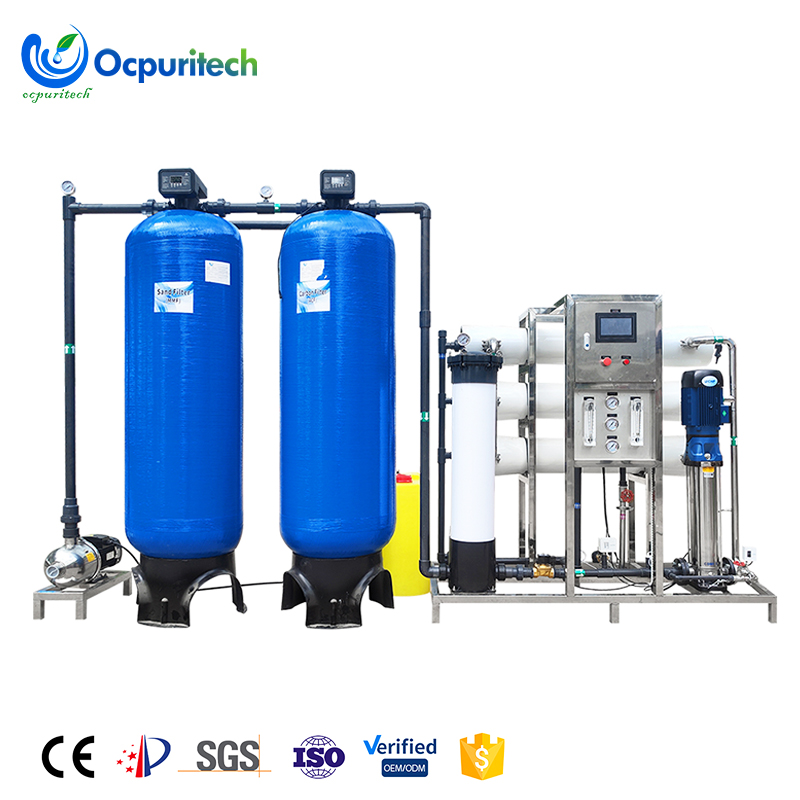

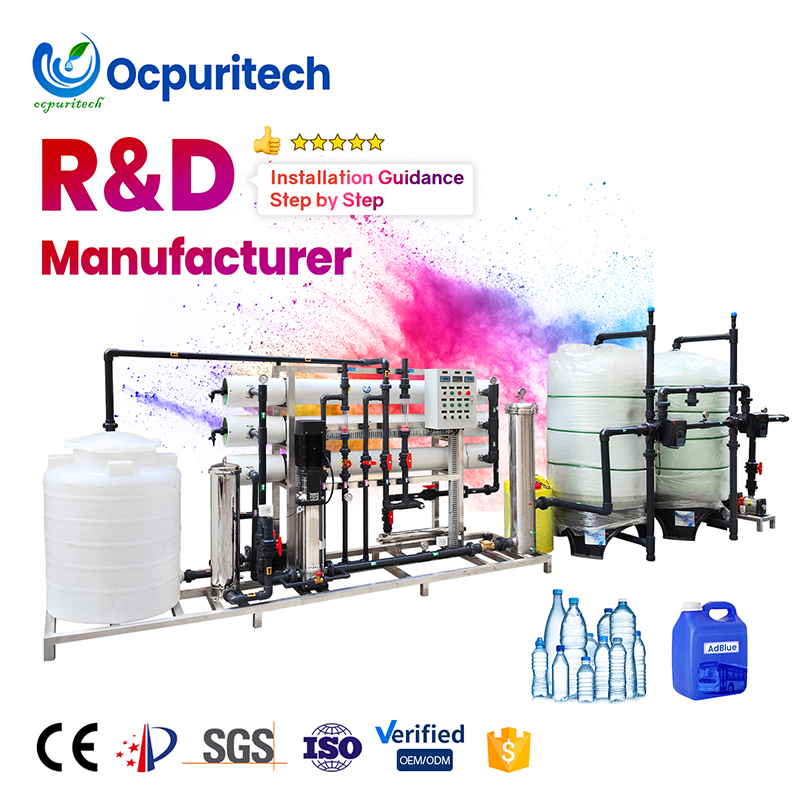

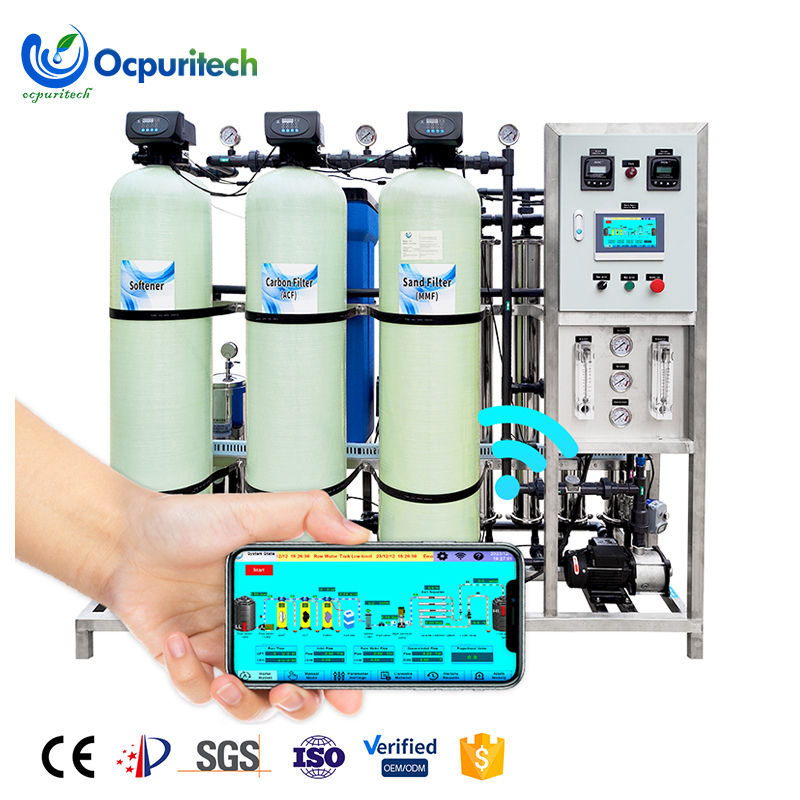

A reverse osmosis system comprises several crucial parts including an intake pump, sand filter, activated carbon filter, softener, safety filter, high-pressure pump, and the core reverse osmosis membrane. Each plays a vital role in ensuring the system's efficiency and longevity.

Feed Water Pump: Crafted from high-quality 304/316 stainless steel, this pump ensures the longevity and smooth operation of the system. Its primary role is to drive the water into the system with the right pressure.

Sand Filter: Utilizing quartz sand and gravel, this filter, housed in either FRP or stainless steel tanks, removes physical impurities larger than 10 microns.

Activated Carbon Filter: Made with coconut shell activated carbon, this filter, placed within fiberglass or stainless steel containers, removes chlorine, odors, and unpleasant tastes, enhancing the water's quality.

Softener: By utilizing cation resin, this component removes hardness-inducing salts like calcium, iron, and magnesium, preventing scale formation within the system.

Safety Filter: Equipped with a 5-micron polypropylene PP filter cartridge, it safeguards the reverse osmosis membrane by removing residual impurities.

High-Pressure Pump: Another component made from superior 304/316 stainless steel, it provides the essential high pressure for the reverse osmosis process to take place.

Reverse Osmosis Membrane: This is the heart of the system. With incredibly tiny pores (around 0.0001 microns), it meticulously separates and removes dissolved substances, organic matter, pyrogens, submicron colloidal particles, color, nitrates, and bacteria. Reverse osmosis system is a high-precision water purification method, effectively removing up to 99.5% of impurities for safe, pure water.

What Is a Commercial & Industrial RO Water Treatment System?

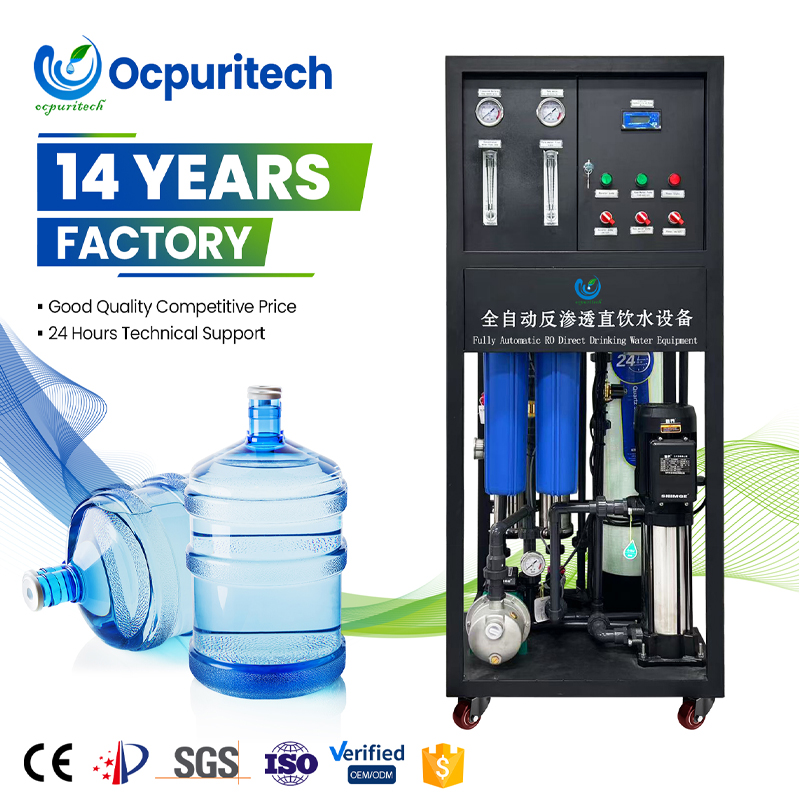

Commercial Reverse Osmosis (RO) Water Treatment Systems

Designed for restaurants, hotels, cafés, and similar applications, commercial RO systems can directly replace bottled water--eliminating the hassles and potential hygiene risks of ongoing ordering, storage, and handling. By saving on water purchasing costs, businesses can quickly recover their investment and generate returns. These compact systems require minimal floor space and are easy to install in back-of-house kitchens, equipment rooms, or other limited areas.

By delivering better-tasting, safe, direct-drinking ice water, beverages, and soups, commercial RO systems significantly enhance customer experience and business value--directly improving food and beverage quality and strengthening the brand image of restaurants and hotels as a subtle yet powerful competitive advantage.

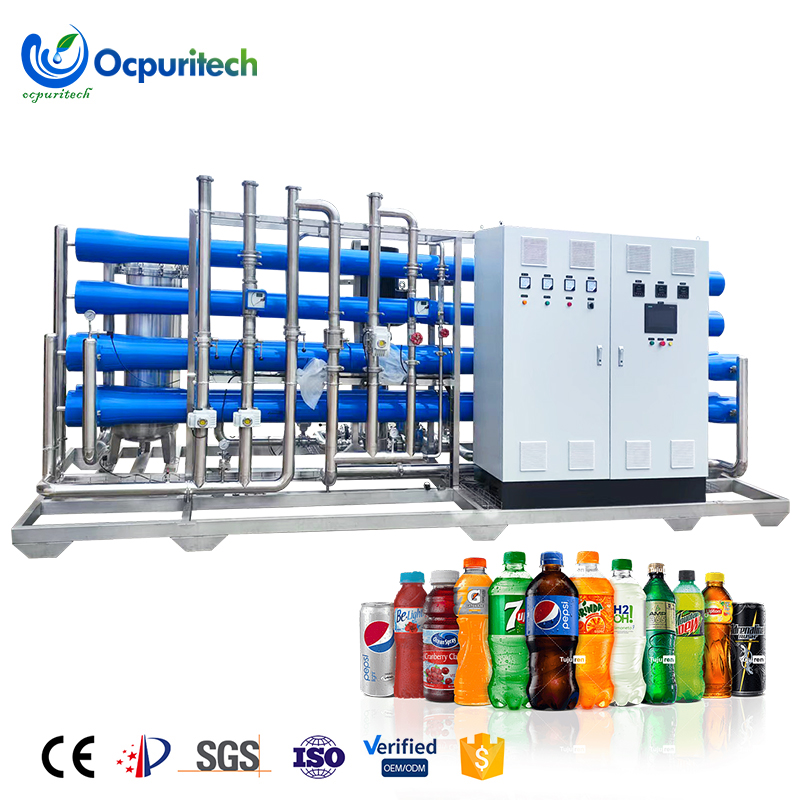

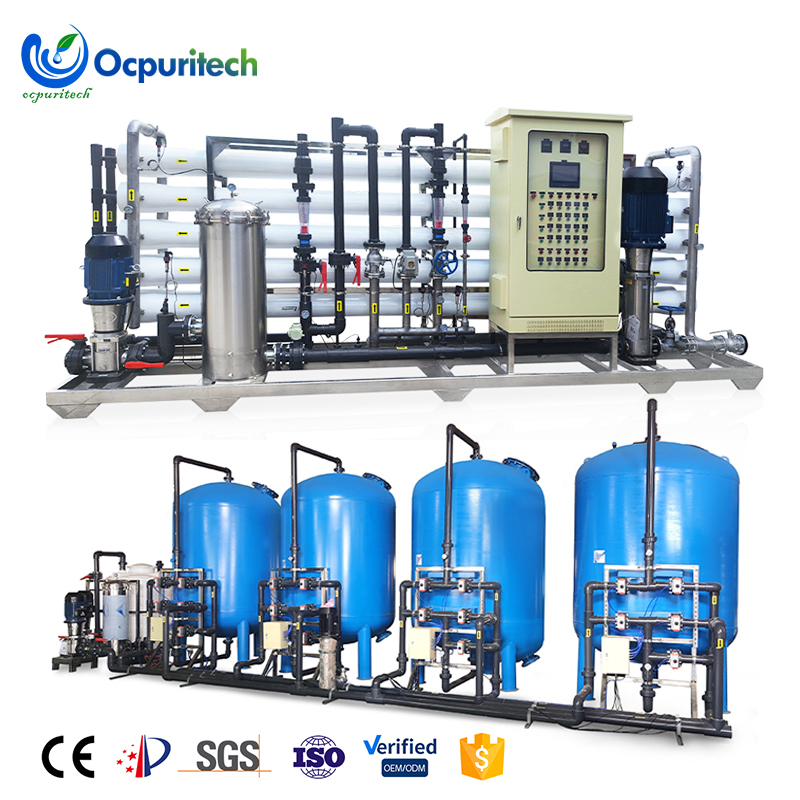

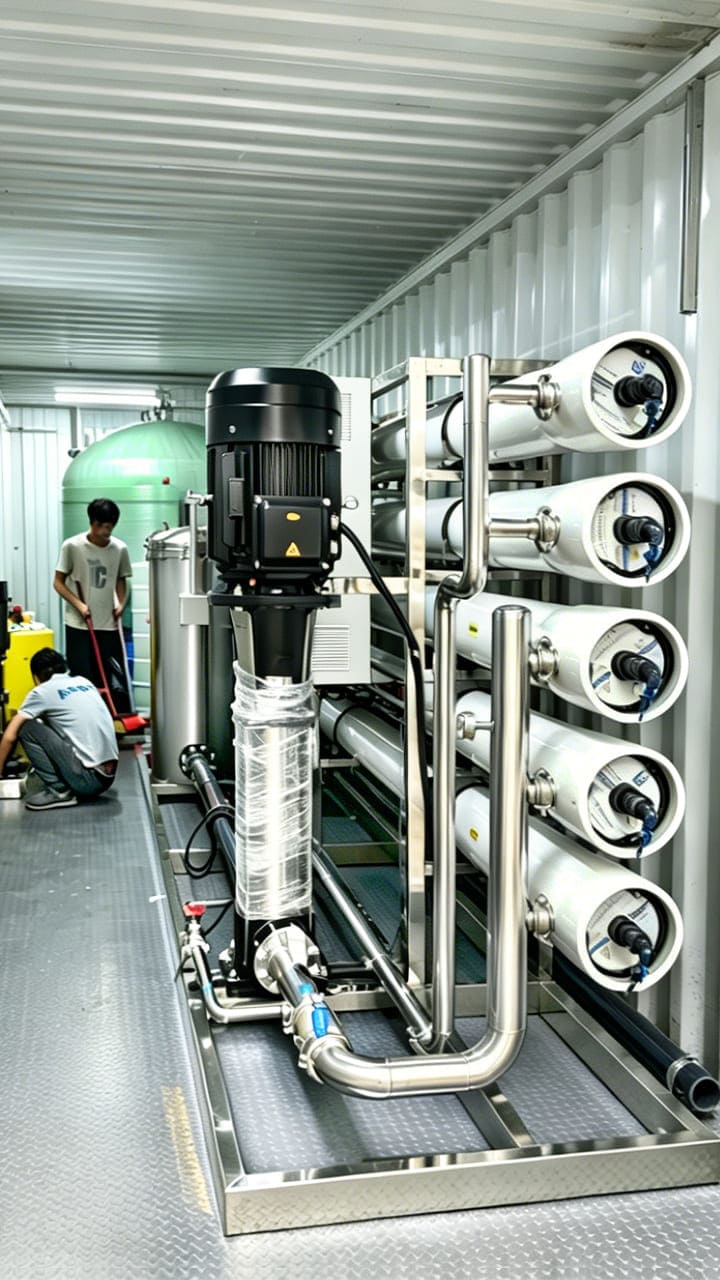

Industrial Reverse Osmosis Water Treatment Systems

Built with industrial-grade pumps, valves, piping, and fully automated PLC control systems, these solutions incorporate multiple layers of protection and redundancy to ensure stable 24/7 continuous operation.

Through refined pretreatment, multi-stage filtration, and energy recovery devices (such as those used in seawater desalination), the system maximizes water recovery rates while minimizing wastewater discharge and extending the service life of consumables. For large-scale water demand scenarios, this results in exceptionally low long-term operating costs.

For bottled water plants, premium beverage production, and similar applications, producing purified water in-house offers a significantly lower long-term cost compared to purchasing external purified or distilled water. Additional savings are realized through reduced scaling, lower energy consumption, and decreased maintenance expenses.

What Are The Uses of a Water Purification Plant?

A reverse osmosis (RO) water treatment plant is engineered to use high-performance RO membranes for the precise removal of dissolved salts, hardness ions, microorganisms, organic matter, and other contaminants. As a result, the system consistently produces high-quality purified water that meets municipal, industrial, and desalination standards.

As a professional industrial RO plant manufacturer, we design RO water purification plants for a wide range of application scenarios, including the following:

1. Municipal Drinking Water Treatment Solutions

In many regions, raw water sources such as rivers, lakes, and groundwater contain high salinity, excessive hardness, organic pollutants, or heavy metals. A municipal RO water treatment plant provides a reliable solution for improving drinking water quality in these challenging conditions.

Through advanced reverse osmosis filtration, the system effectively removes calcium and magnesium ions, fluoride, arsenic, nitrates, and other harmful substances. The treated water fully complies with national drinking water standards, making RO technology ideal for high-salinity and high-hardness drinking water treatment projects and ensuring long-term water safety.

2. Industrial Process Water and Purified Water Production

Reverse osmosis is the core technology for producing industrial purified water and ultrapure water, and it is widely adopted across multiple industries:

Electronics Industry: Production of ultrapure water for semiconductor manufacturing, wafer processing, and printed circuit board (PCB) cleaning.

Power Generation Industry: Supply of high-purity boiler feedwater to prevent scaling, reduce corrosion, and extend the service life of boilers and turbines.

Pharmaceutical Industry: Production of ultrapure water that complies with pharmacopeia standards, ensuring sterility and purity throughout drug manufacturing processes.

Food & Beverage Industry: Used in the production of bottled water, beverages, alcoholic drinks, and dairy products to ensure consistent taste and product quality.

3. Seawater and Brackish Water Desalination

In coastal regions and arid or semi-arid areas with limited freshwater resources, reverse osmosis water purification plants are a key solution to long-term water scarcity.

Seawater Desalination: High-pressure RO membranes separate salts and impurities from seawater to produce freshwater suitable for drinking, industrial use, or agricultural irrigation. RO seawater desalination plants serve as an essential supplementary water source for water-stressed coastal cities.

Brackish Water Desalination: Treatment of high-salinity brackish groundwater to meet domestic or industrial water quality standards, helping to alleviate water shortages in drought-prone regions.
