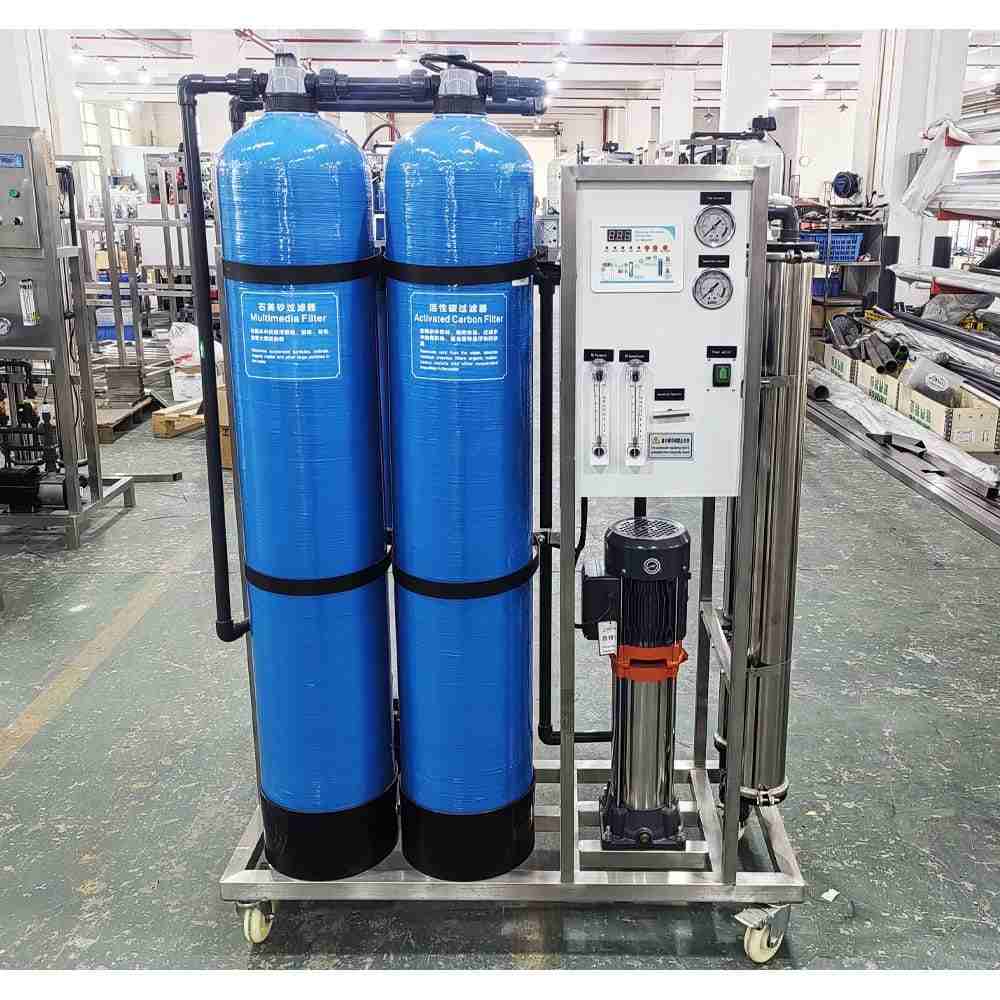

Industrial Water Treatment Equipment 500lph Reverse Osmosis Water Purification System
Aomi 500L reverse osmosis RO systems “CT-0.5T-M2 series” are a compact and energy-efficient reverse osmosis water purification system. Tap water, municipal water, and borehole water can be safely used for drinking after undergoing filtration, purification, and water treatment processes, ensuring compliance with drinking water standards. Our reverse osmosis equipment is capable of reaching incredibly high recovery rates.
Our water treatment equipment offers exceptional value for money, producing high-quality water at the lowest cost. With simple operation and quick startup—just one click to power on—it guarantees efficient and stable water quality solutions.

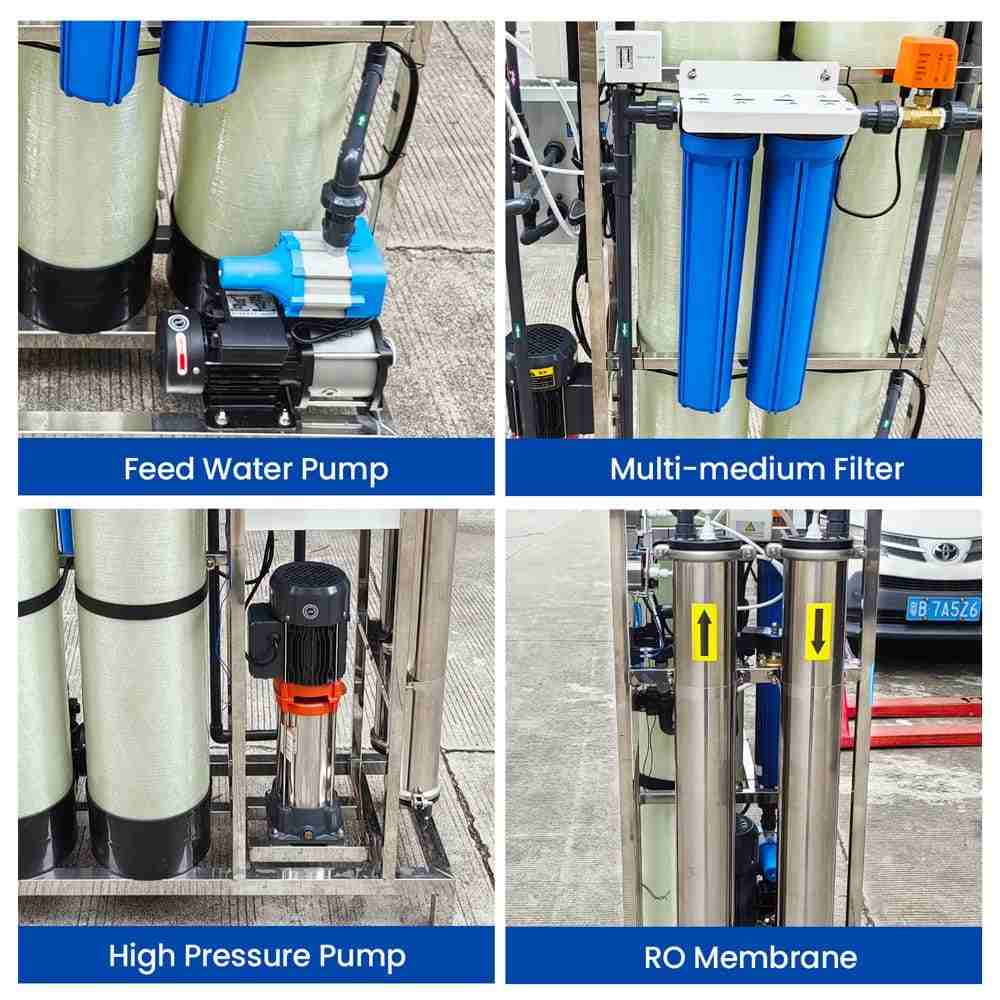

Work Flow: Raw Water Tank → Feed Water Pump → Sand Filter → Carbon Filter → Security Filter → High Pressure Pump → Reverse Osmosis System → Pure Water Tank
Based on different raw water conditions and specific customer requirements, the system configuration can be customized with alternative materials, components, and international or domestic brands to achieve optimal purification performance and operational efficiency.
What Is A Reverse Osmosis (RO) System?
A reverse osmosis (RO) system is a pressure-driven water purification technology that forces feed water through a semi-permeable membrane to remove dissolved contaminants at the molecular level.
In an reverse osmosis filtration system, applied pressure overcomes natural osmotic pressure, driving water from a high-concentration brine stream across the membrane to a low-concentration permeate stream. The membrane rejects up to 99.7% of total dissolved solids (TDS), including:
- Dissolved salts and minerals
- Heavy metals (lead, arsenic, mercury, chromium)
- Bacteria, viruses, and protozoa
- Organic compounds and pesticides
- Industrial chemicals and dyes
The membrane’s rejection threshold — typically below 0.0001 micron — makes RO fundamentally different from conventional media filtration. Where sand or carbon filters trap suspended particles by physical exclusion, a commercial RO water treatment system separates contaminants at the ionic level, producing high-purity permeate water suitable for critical industrial processes.
How RO Compares to Other Water Treatment Methods
| Technology | Filtration Precision | Energy Cost | Chemical Cost | Typical Application |
|---|---|---|---|---|
| Reverse Osmosis | < 0.0001 μm | Moderate | Low | High-purity process water |
| Distillation | High | Very high | Minimal | Pharmaceutical WFI |
| Ultrafiltration (UF) | ~ 0.01 μm | Low | Low | Pretreatment, wastewater reuse |
| Ion Exchange (IX) | Ionic level | Low | High (regeneration) | Demineralization, softening |
Industrial & Commercial Applications of Reverse Osmosis Systems
Reverse Osmosis Water Purification System serve a broad spectrum of sectors where water quality directly impacts production outcomes:
- Boiler feed water treatment — prevents scaling and corrosion in high-pressure steam systems
- Pharmaceutical and medical water — meets USP purified water standards
- Food and beverage processing — ingredient water, CIP rinse, and product formulation
- Semiconductor and electronics — ultrapure water for wafer fabrication
- Power generation — turbine-grade demineralized water
- Desalination — seawater and brackish water RO systems for municipal or industrial supply
- Chemical manufacturing — consistent process water quality batch to batch

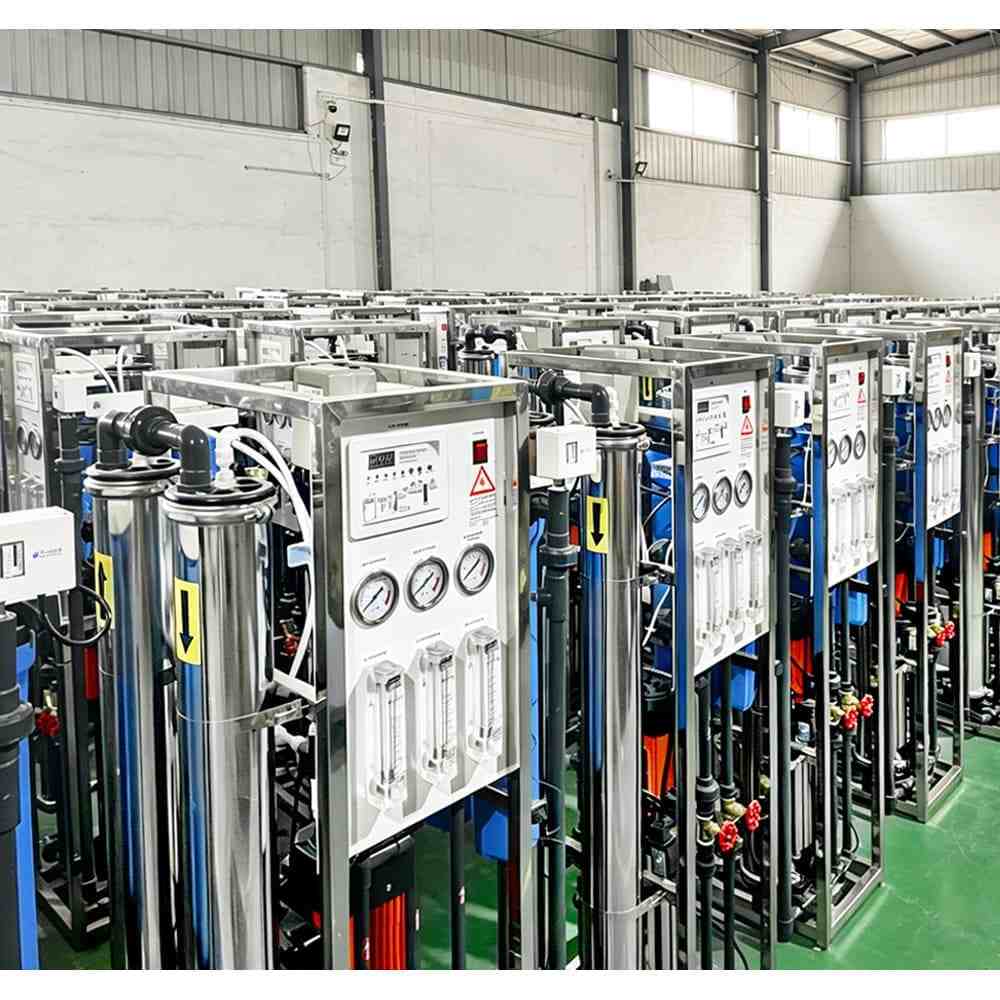

As a professional Reverse Osmosis System Manufacturer and Supplier in China, we provide complete prefabricated and customized RO water treatment solutions for commercial and industrial projects worldwide. Our RO systems are available with capacities ranging from 100 liters per hour to 50 tons per hour, meeting various water production demands from small businesses to large-scale industrial facilities.
