Engineered Brackish Water Desalination Systems Built for Demanding Industrial Operations
When groundwater salinity fluctuates and feed water chemistry deteriorates, standard reverse osmosis systems fail to deliver consistent permeate quality. Our brackish water desalination systems are purpose-built to handle TDS ranges from 2,000 ppm to 10,000 ppm — delivering reliable, low-cost desalinated water for industrial processes, municipal supply, and agricultural irrigation.
Every brackish water reverse osmosis system in our portfolio is configured around your specific feed water analysis, not a one-size-fits-all specification. From membrane selection to pretreatment design, each BWRO desalination plant is engineered through advanced hydraulic analysis to optimize recovery rate, reduce membrane fouling, and lower lifetime operating costs.
As an experienced brackish water reverse osmosis systems manufacturer, we provide customized BWRO desalination solutions from system design and membrane selection to manufacturing, testing, and global delivery.
Available Capacity Range of Our BWRO Water Treatment System
Our BWRO desalination plants are available in multiple capacities to meet different industrial, municipal, and commercial water treatment requirements. Each system can be customized according to feed water quality, required recovery rate, and project water demand.
| System Type | Capacity Range | Typical Applications |
|---|---|---|
| Commercial BWRO System | 10–500 m³/day | Small communities, farms, commercial facilities |
| Industrial BWRO System | 500-5000 m³/day | Bottled water, hotels, factories |
| Customized BWRO Desalination Plant | Project-based | Municipal projects, power plants, mining |
How a Brackish Water Desalination System Works: The Complete Process
Understanding the process flow is critical for evaluating system design quality. A properly engineered brackish water RO system operates through four integrated stages:
Stage 1: Pretreatment — Protecting RO Membrane Longevity
Feed water entering the brackish water purification system must meet strict quality parameters before reaching the membrane array. Pretreatment design is determined by your raw water analysis and typically includes:
| Pretreatment Component | Function | When Required |
| Multimedia filter (MMF) | Removes suspended solids (TSS), turbidity, and particulate >10 micron | SDI >3, turbidity >1 NTU |
| Activated carbon filter (ACF) | Removes free chlorine, organics, odor, and color | Municipal feed water or surface water sources |
| Water softener | Prevents hardness scaling (CaCO₃, CaSO₄, BaSO₄) on membrane surfaces | Hardness >1 GPG or LSI >0 |
| 5-micron cartridge filter | Final barrier protection before the high-pressure pump | Standard on all systems |
Stage 2: High-Pressure Reverse Osmosis Systems Membrane Separation
Conditioned feed water is pressurized by a multi-stage stainless steel high-pressure pump and directed into the membrane array. Each pressure vessel houses multiple 4-inch or 8-inch TFC (thin-film composite) spiral-wound membranes configured in a staged array to maximize recovery while maintaining crossflow velocity.
The semi-permeable membrane rejects up to 99.7% of dissolved salts, bacteria, organic compounds with molecular weight >150 Daltons, and colloidal silica — producing permeate water suitable for downstream industrial use.
Stage 3: Permeate & Concentrate Separation
The brackish water RO desalination system splits the feed stream into two outputs:
Permeate (product water): Desalinated water collected from the membrane permeate ports — typically <50 ppm TDS depending on feed concentration and recovery rate.
Concentrate (reject stream): Brine containing the concentrated contaminants rejected by the membrane — directed to disposal or further treatment.
Stage 4: Post-Treatment & Distribution
Depending on your application requirements, permeate water may pass through additional post-treatment:
- ◉ PH adjustment via calcite filter or chemical dosing for corrosion control
- ◉ UV sterilization for microbiological safety in food & beverage applications
- ◉ EDI (electrodeionization) polishing for ultrapure water requirements (<1 µS/cm)
- ◉ Remineralization for potable water distribution
System Operating Specifications & Feed Water Requirements
Maintaining feed water quality within the following parameters ensures optimal membrane performance and extended service life for your brackish water reverse osmosis desalination system:
| Parameter | Specification |
| Feed water TDS range | 2,000 – 10,000 ppm (higher on request with upgrade package) |
| Operating pressure | 150 – 400 psi (feed TDS dependent) |
| Feed water pressure (inlet) | 20 – 80 psi |
| Maximum feed water temperature | 42°C (107°F) |
| pH tolerance range | 3 – 11 (continuous operation: 6 – 8.5 recommended) |
| Maximum iron (Fe) content | <0.05 ppm (must be removed upstream) |
| Maximum manganese (Mn) content | <0.02 ppm |
| Maximum silica (SiO₂) tolerance | 60 ppm @ 60% recovery |
| SDI (Silt Density Index) | <3 (5-minute SDI) |
| Free chlorine | Must be zero (<0.1 ppm detection limit) |
| Oil & grease | Must be zero |
| Hydrogen sulfide (H₂S) | Must be removed upstream |
| Hardness | >1 GPG requires antiscalant dosing or softening |
Key operating principle: Recovery rate is inversely proportional to feed TDS. When treating higher-salinity brackish groundwater, lowering the recovery rate reduces scaling risk and extends membrane cleaning intervals. Our engineering team calculates the optimal recovery setpoint during system sizing.

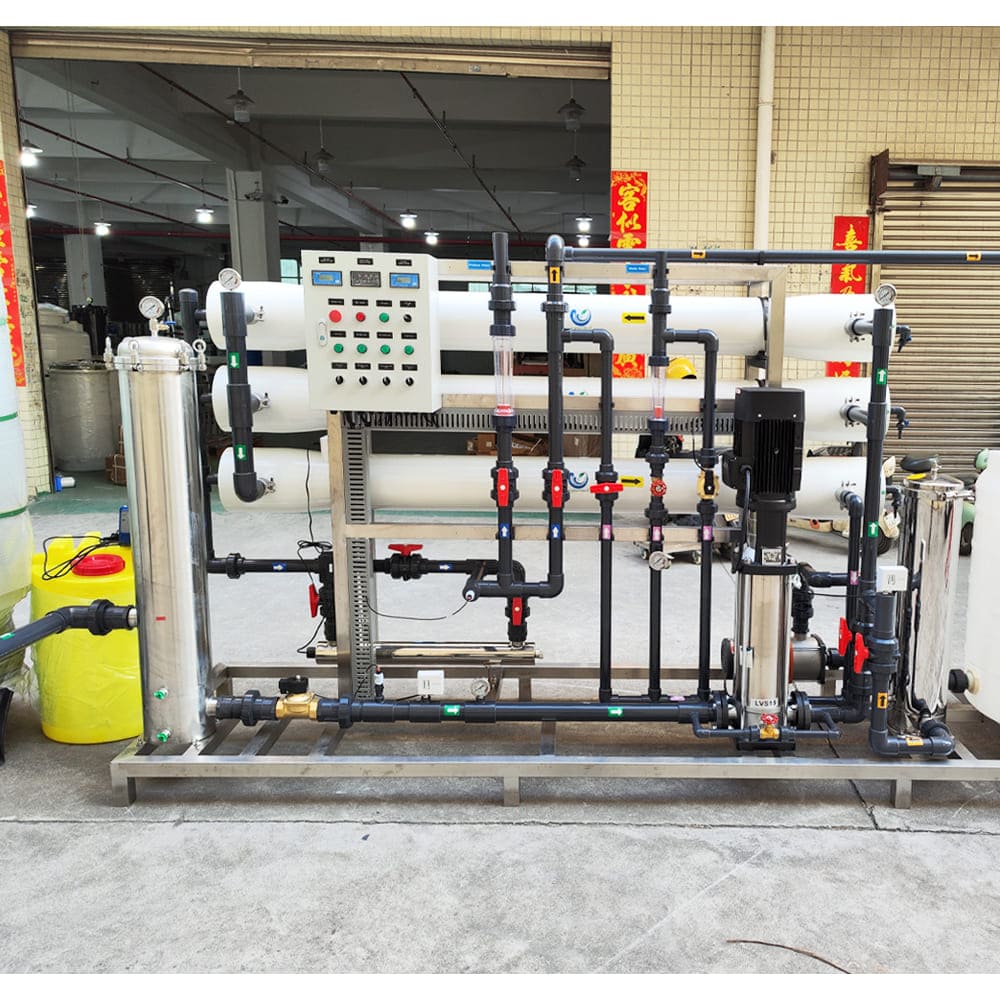

Standard Features — Every Brackish Water Desalination System Includes
| Category | Standard Features |
| Frame & Structure | Powder-coated carbon steel skid frame; forklift pockets for easy handling; vibration-dampening pump mounts |
| Membranes | TFC spiral-wound 4″ or 8″ membranes (Dow / Hydranautics / Toray); multi-membrane FRP pressure vessels with end-port connections |
| High-Pressure Pump | 316L stainless steel multi-stage centrifugal pump with TEFC motor; Victaulic coupling connections for serviceability |
| Prefiltration | 5-micron polypropylene cartridge prefilter with inlet/outlet pressure gauges for differential monitoring |
| Control System | PLC-based microprocessor controller with color LCD touchscreen; NEMA 12 enclosure; motor starter with overload protection |
| Instrumentation | Liquid-filled pressure gauges (prefilter in/out, pump discharge, membrane feed, concentrate); permeate conductivity monitor with digital display; permeate & concentrate flow meters (panel-mounted rotameters) |
| Safety Protections | Low-pressure switch (pump dry-run protection); high-pressure switch (over-pressure shutdown); motor thermal overload relay |
| Electrical | 460V / 3-phase / 60Hz standard (220V, 380V, 415V / 50Hz configurable); pre-wired terminal strip for single-point connection |
Industrial Applications of Brackish Water Desalination Systems
Our brackish water desalination systems are designed for industries that require reliable freshwater supply from brackish groundwater, saline sources, and variable-quality feed water.
With customized pretreatment and RO membrane configurations, our BWRO systems deliver stable water quality for municipal, industrial, and commercial applications.
| Industry | Typical Applications |
| Municipal & Utilities | Municipal water treatment, safe drinking water production, groundwater desalination, saline water treatment, and emergency water supply for disaster response. |
| Agriculture & Irrigation | Irrigation water purification, agricultural water treatment, and brackish groundwater treatment for farms and agricultural projects. |
| Food & Beverage | Bottled water production, beverage processing, food processing water, ice manufacturing, and spot-free product rinsing. |
| Power Generation | Boiler feed water, cooling tower makeup water, and process water treatment for power plants. |
| Oil, Gas & Mining | Oilfield water injection, mining process water, mineral processing, and industrial water recovery applications. |
| Pharmaceutical & Laboratory | Pharmaceutical water purification, laboratory water purification systems, and high-quality process water production. |
| Electronics & Semiconductor | High-purity process water, electronics manufacturing, semiconductor production, and precision component cleaning. |
| Chemical & Industrial Manufacturing | Chemical blending, plating operations, industrial process water, and customized pretreatment applications. |
Need a Reliable Brackish Water Desalination Solution?
We are an experienced brackish water desalination systems manufacturer specializing in customized BWRO plants for industrial, municipal, agricultural, and commercial applications. Share your water source information and required capacity with our engineers, and we will provide a suitable system design with a competitive quotation.
